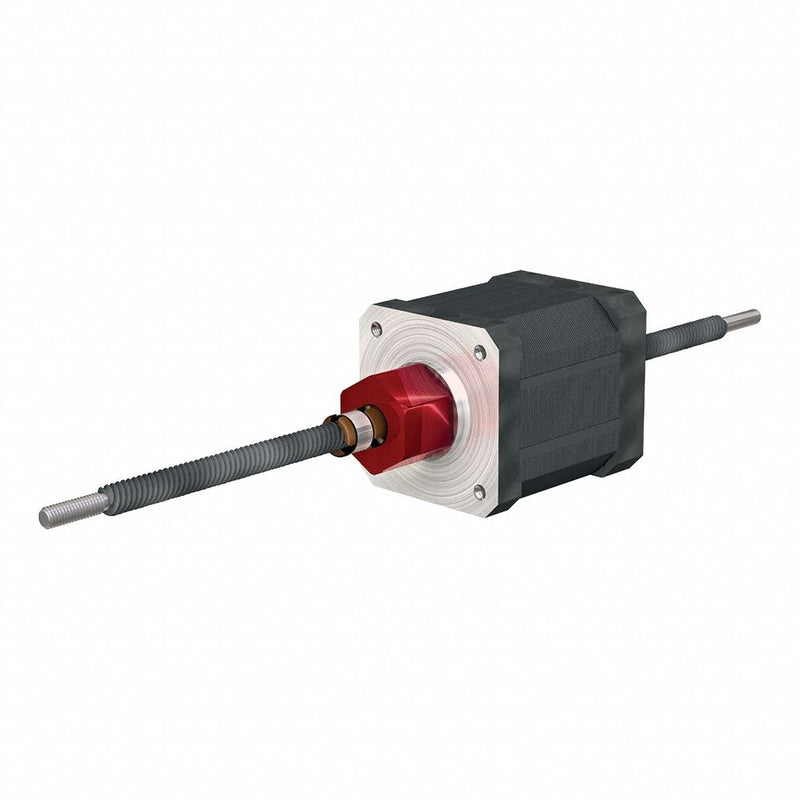

PBC Linear LSR1010T-0300-NCF231-NNN-NNN Motorized Non-Captive Lead Screw, NEMA 23 Stepper Motor, 10 mm Screw Dia, 10 mm Lead, 300 mm Lg
Original price
$423.48
-
Original price
$423.48
Original price
$423.48
$423.48
-
$423.48
Current price
$423.48
Non-Captive Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 23, Insulation Class B, Screw Diameter 10 mm, Lead Length 10 mm, Screw Length 300 mm, Motor Length 57.0 mm, Rated Current 2.2 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C, Assembly Type Non-Captive Lead Screw Assembly, Motor Type Stepper Motor
| Travel per Step | 0.050 mm |
|---|---|
| Lead Accuracy | 0.003 in/ft |
| Phase | 2 |
| Motor Minimum Operating Temperature | -20 Degrees C |
| Motor Type | Stepper Motor |
| Winding Resistance | 1.6 ohm |
| Nut Material | Stainless Steel |
| Motor IP Rating | IP40 |
| Steps per Revolution | 200 |
| Frame | NEMA 23 |
| Rated Current | 2.2 A |
| Screw Material | Stainless Steel |
| Electrical Connection | Plug-In Connector |
| Insulation Class | B |
| Step Accuracy | +/-5% |
| Insulation Resistance | 100 Mohm |
| Screw Type | Lead Screw |
| Screw Material Grade | 300 |
| Right End Components | None |
| Assembly Type | Non-Captive Lead Screw Assembly |
| Left End Components | None |
| Nut Type | Anti-Backlash |
| Coating Material | PTFE |
| Percent Efficiency | 78% |
| Thread Direction | Right |
| Motor Maximum Operating Temperature | 50 Degrees C |
| Country of Origin | United States |
