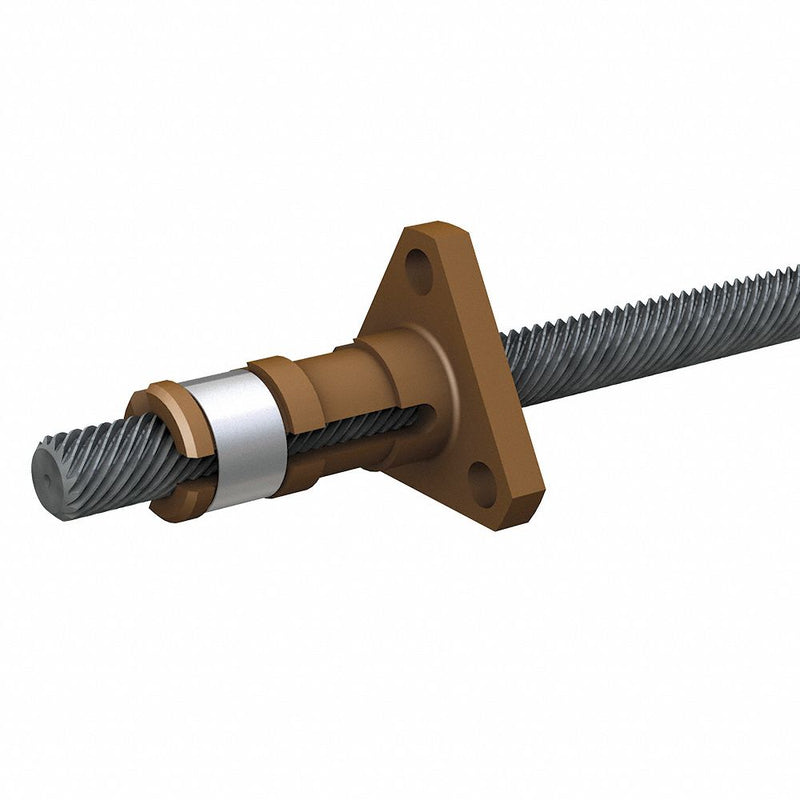

PBC Linear LSR1201T-0508-TCF-NNN-NNN-N Precision Lead Screw, 12 mm Screw Dia, 1 mm Lead, 508 mm Lg, Anti-Backlash Nut
Original price
$214.69
-
Original price
$214.69
Original price
$214.69
$214.69
-
$214.69
Current price
$214.69
Precision Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Nut Shape Triangle, Screw Diameter 12 mm, Lead Length 1 mm, Screw Length 508 mm, Nut Length 44.5 mm, Nut Flange Diameter 44.5 mm, Nut Dynamic Load Capacity 703 N, Assembly Type Lead Screw and Nut Assembly, Nut Bolt Circle Diameter 35.7 mm, Nut Diameter 16.9 mm, Nut Flange Thickness 6.4 mm
| Thread Direction | Right |
|---|---|
| Screw Type | Lead Screw |
| Assembly Type | Lead Screw and Nut Assembly |
| Nut Type | Anti-Backlash |
| Nut Shape | Triangle |
| Coating Material | PTFE |
| Screw Material | Stainless Steel |
| Screw Material Grade | 300 |
| Nut Material | Stainless Steel |
| Lead Accuracy | 0.003 in/ft |
| Nut Drag Torque | 0.0211 to 0.0264 Nm |
| Percent Efficiency | 24% |
| Left End Components | None |
| Right End Components | None |
| Nut Dynamic Load Capacity | 703 N |
| Country of Origin | United States |
