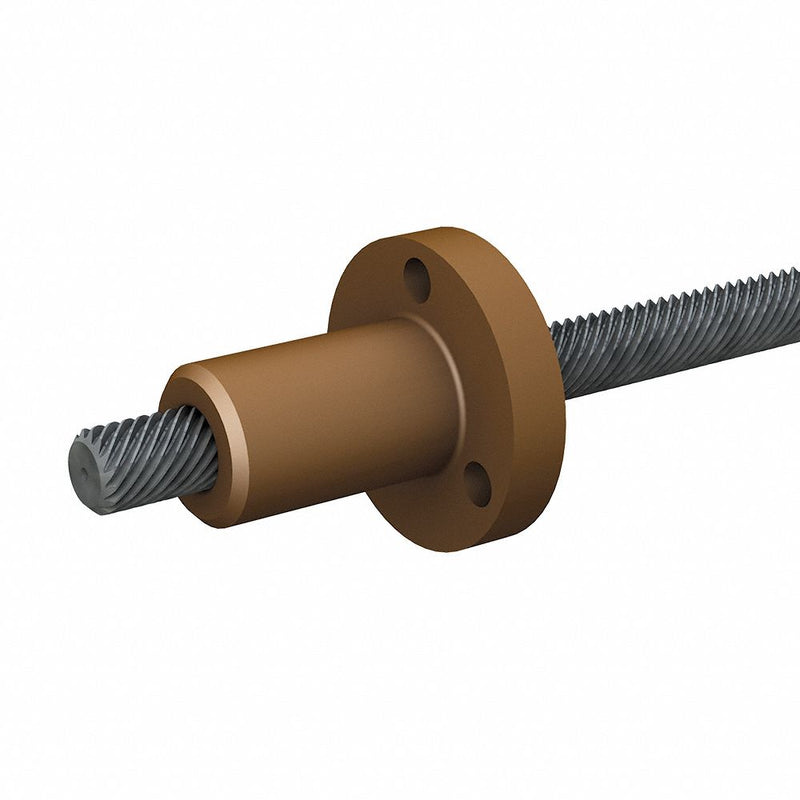

PBC Linear LSR1205T-0254-RS-NNN-NNN-N Precision Lead Screw, 12 mm Screw Dia, 5 mm Lead, 254 mm Lg, Standard Nut
Original price
$117.65
-
Original price
$117.65
Original price
$117.65
$117.65
-
$117.65
Current price
$117.65
Precision Lead Screw, Nut Type Standard, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Nut Shape Round, Screw Diameter 12 mm, Lead Length 5 mm, Screw Length 254 mm, Nut Length 38.1 mm, Nut Flange Diameter 44.5 mm, Nut Dynamic Load Capacity 778 N, Assembly Type Lead Screw and Nut Assembly, Nut Bolt Circle Diameter 35.7 mm, Nut Diameter 16.9 mm, Nut Flange Thickness 6.4 mm
| Thread Direction | Right |
|---|---|
| Screw Type | Lead Screw |
| Assembly Type | Lead Screw and Nut Assembly |
| Nut Type | Standard |
| Nut Shape | Round |
| Coating Material | PTFE |
| Screw Material | Stainless Steel |
| Screw Material Grade | 300 |
| Nut Material | Stainless Steel |
| Lead Accuracy | 0.003 in/ft |
| Nut Drag Torque | Free Wheeling |
| Percent Efficiency | 62% |
| Left End Components | None |
| Right End Components | None |
| Nut Dynamic Load Capacity | 778 N |
| Country of Origin | United States |
