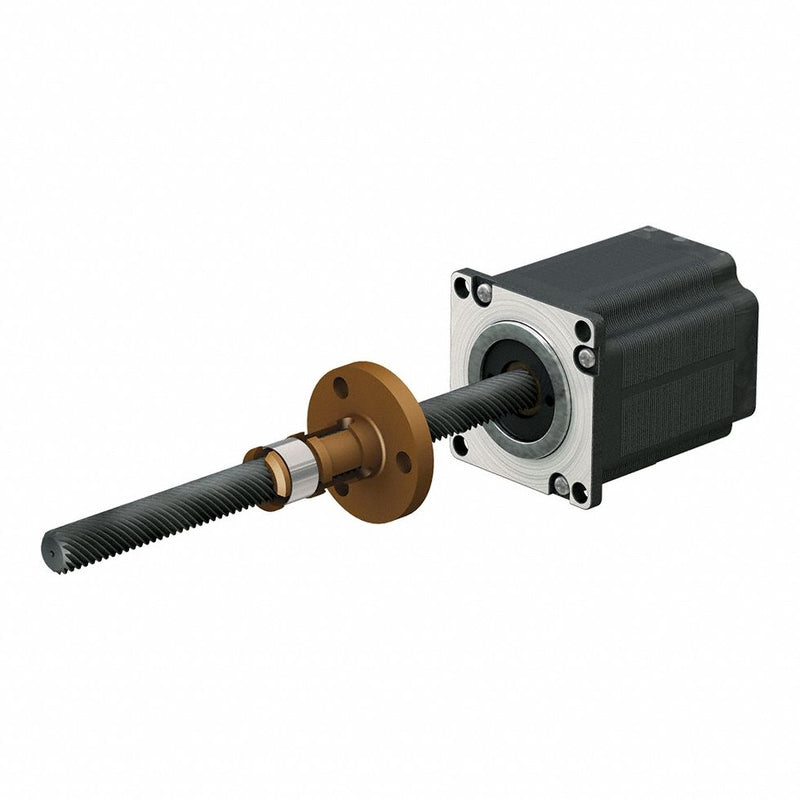

PBC Linear LSR1605T-0400-RCF-232-NNN-N Motorized Lead Screw Assembly, NEMA 23 Stepper Motor, 16 mm Screw Dia, 5 mm Lead, 400 mm Lg
Original price
$498.07
-
Original price
$498.07
Original price
$498.07
$498.07
-
$498.07
Current price
$498.07
Precision Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 23, Nut Shape Round, Insulation Class B, Screw Diameter 16 mm, Lead Length 5 mm, Screw Length 400 mm, Nut Length 49.5 mm, Nut Flange Diameter 54 mm, Motor Length 79.0 mm, Rated Current 3 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C
| Travel per Step | 0.025 mm |
|---|---|
| Nut Material | Stainless Steel |
| Left End Components | None |
| Assembly Type | Lead Screw Assembly |
| Winding Resistance | 1.1 ohm |
| Rated Current | 3 A |
| Screw Type | Lead Screw |
| Screw Material Grade | 300 |
| Insulation Class | B |
| Lead Accuracy | 0.003 in/ft |
| Percent Efficiency | 55% |
| Insulation Resistance | 100 Mohm |
| Nut Type | Anti-Backlash |
| Motor IP Rating | IP40 |
| Screw Material | Stainless Steel |
| Motor Maximum Operating Temperature | 50 Degrees C |
| Nut Shape | Round |
| Electrical Connection | Plug-In Connector |
| Motor Type | Stepper Motor |
| Right End Components | None |
| Coating Material | PTFE |
| Frame | NEMA 23 |
| Steps per Revolution | 200 |
| Phase | 2 |
| Step Accuracy | +/-5% |
| Motor Minimum Operating Temperature | -20 Degrees C |
| Thread Direction | Right |
| Nut Drag Torque | 0.0250 to 0.0310 Nm |
| Nut Dynamic Load Capacity | 1,040 N |
| Country of Origin | United States |
