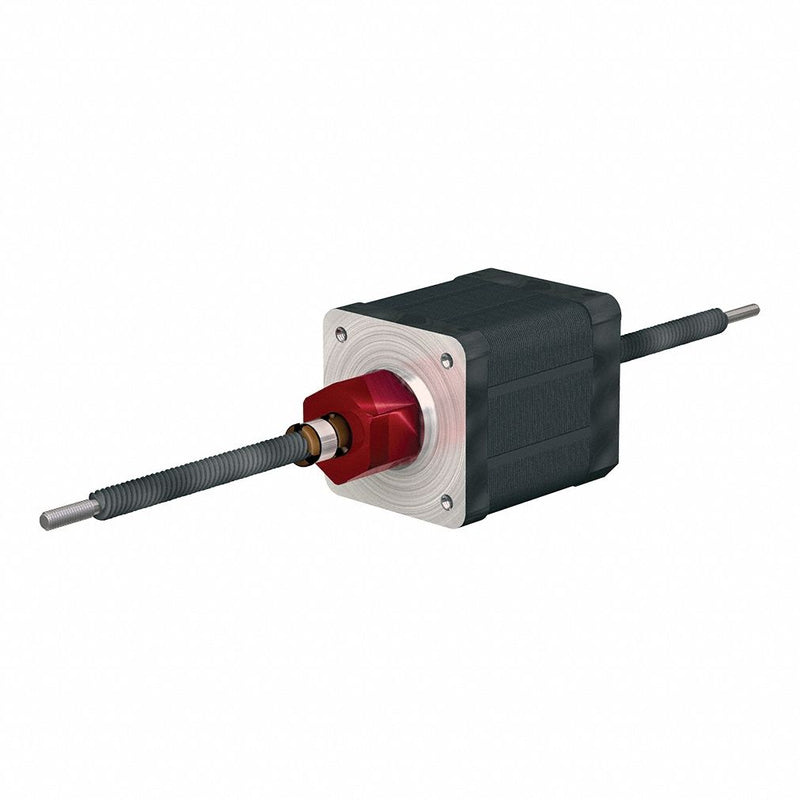

PBC Linear LSR18005T-08.00-NCF111-NNN-NNN Motorized Non-Captive Lead Screw, NEMA 11 Stepper Motor, 3/16 in Screw Dia, 0.05 in Lead, 8 in Lg
Original price
$403.59
-
Original price
$403.59
Original price
$403.59
$403.59
-
$403.59
Current price
$403.59
Non-Captive Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 11, Insulation Class B, Screw Diameter 3/16 in, Lead Length 0.05 in, Screw Length 8 mm, Motor Length 41.0 mm, Rated Current 1 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C, Assembly Type Non-Captive Lead Screw, Motor Type Stepper Motor
| Motor Maximum Operating Temperature | 50 Degrees C |
|---|---|
| Nut Material | Stainless Steel |
| Motor Minimum Operating Temperature | -20 Degrees C |
| Rated Current | 1 A |
| Winding Resistance | 2.7 ohm |
| Screw Material Grade | 300 |
| Assembly Type | Non-Captive Lead Screw |
| Nut Type | Anti-Backlash |
| Coating Material | PTFE |
| Steps per Revolution | 200 |
| Screw Type | Lead Screw |
| Lead Accuracy | 0.003 in/ft |
| Frame | NEMA 11 |
| Electrical Connection | Plug-In Connector |
| Insulation Resistance | 100 Mohm |
| Motor IP Rating | IP40 |
| Motor Type | Stepper Motor |
| Step Accuracy | +/-5% |
| Phase | 2 |
| Insulation Class | B |
| Thread Direction | Right |
| Screw Material | Stainless Steel |
| Travel per Step | 0.0003 in |
| Country of Origin | United States |
