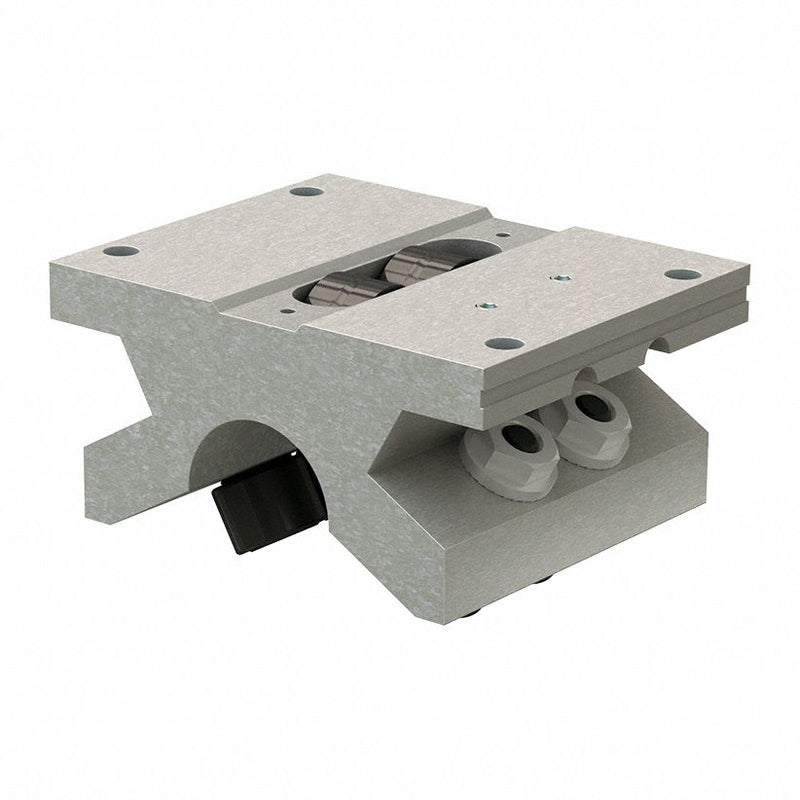

PBC Linear MDPB-16-OPN Double Roller Pillow Block, For 16 mm Round Shaft, 4,448.22 N Dynamic Load Rating

PBC Linear MDPB-16-OPN Double Roller Pillow Block, For 16 mm Round Shaft, 4,448.22 N Dynamic Load Rating

$671.23 - $671.23
$671.23
$671.23 - $671.23
$671.23

Double Roller Pillow Block, System of Measurement Metric, For Shaft Diameter 16 mm, Overall Length 44.45 mm, Overall Width 63.5 mm, Overall Height 1.40625 in, Center Height 0.877 in, Dynamic Load Rating 4,448.22 N, Carriage Type Double, Mount Hole Center to Center Width 2.125 in, Mount Hole Center to Center Length 2 in, For Shaft Type Round, Mounting Hole Diameter 0.1875 in, Shaft Center to Mount Hole Width 1.0625 in, Bearing Material Aluminum Alloy, Mounting Bolt Size #8

Bore Diameter 16 mm
Center Height 0.877 in
Mount Hole Center-to-Center Length 2 in
Mount Hole Size 0.1875 in
Overall Length 44.45 mm
Overall Width 63.5 mm
Overall Height 1.40625 in
Mounting Bolt Size #8
Shaft Center to Mount Hole Width 1.0625 in
Mount Hole Center-to-Center Width 2.125 in
System of Measurement Metric
Housing Material Aluminum Alloy
Bearing Material Aluminum Alloy
Standards ISO
Carriage Type Double
Resistance Properties Corrosion Resistance
For Shaft Type Round
Dynamic Load Rating 4,448.22 N
Lubricant Material Grease Lubrication
Country of Origin United States
