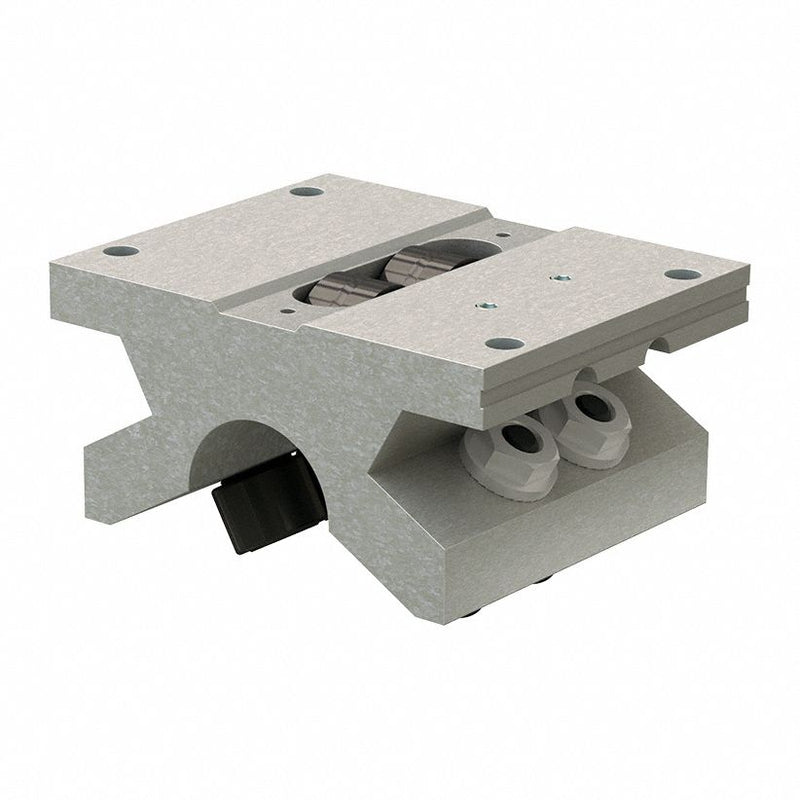

PBC Linear MDPB-30-OPN Double Roller Pillow Block, For 30 mm Round Shaft, 12,455.02 N Dynamic Load Rating

Name: PBC Linear MDPB-30-OPN Double Roller Pillow Block, For 30 mm Round Shaft, 12,455.02 N Dynamic Load Rating
Brand: PBC Linear
SKU: RW807KX9
Price: 1063.04 USD
Availability: InStock

$1,063.04 - $1,063.04

$1,063.04

$1,063.04 - $1,063.04

$1,063.04

Double Roller Pillow Block, System of Measurement Metric, For Shaft Diameter 30 mm, Overall Length 85.73 mm, Overall Width 101.6 mm, Overall Height 2.5625 in, Center Height 1.465 in, Dynamic Load Rating 12,455.02 N, Carriage Type Double, Mount Hole Center to Center Width 3.5 in, Mount Hole Center to Center Length 2 in, For Shaft Type Round, Mounting Hole Diameter 0.21875 in, Shaft Center to Mount Hole Width 1.75 in, Bearing Material Aluminum Alloy, Mounting Bolt Size #10

Bore Diameter	30 mm
Center Height	1.465 in
Mount Hole Center-to-Center Length	2 in
Mount Hole Size	0.21875 in
Overall Length	85.73 mm
Overall Width	101.6 mm
Overall Height	2.56 in
Shaft Center to Mount Hole Width	1.75 in
Mounting Bolt Size	#10
Mount Hole Center-to-Center Width	3.5 in
System of Measurement	Metric
Housing Material	Aluminum Alloy
Bearing Material	Aluminum Alloy
Standards	ISO
Resistance Properties	Corrosion Resistance
For Shaft Type	Round
Carriage Type	Double
Dynamic Load Rating	12,455.02 N
Lubricant Material	Grease Lubrication
Country of Origin	United States
