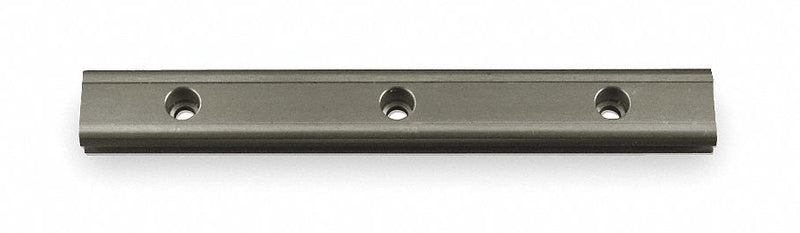

PBC Linear MR12R-1000 Miniature Profile Guide, Size 12, 1,000 mm Length, 12 mm Width, Aluminum
Original price
$212.82
-
Original price
$212.82
Original price
$212.82
$212.82
-
$212.82
Current price
$212.82
Miniature Profile Guide, Overall Length 1,000 mm, Overall Width 12 mm, Overall Height 8 mm, Rail Material Aluminum, Manufacturer Size 12, Number of Mounting Holes 40, Rail Finish Ceramic Coated, Rail Type Profile, System of Measurement Metric, For Use With Mini-Rail Carriages, Mounting Hole Center to Center 25 mm, Mounting Hole Center to Shaft End 13 mm, Series MR, Mounting Hole Size 3.5 mm
| Raceway | Ceramic Coated |
|---|---|
| Operating Temperature - Maximum | 400 Degrees F |
| Operating Temperature - Minimum | -400 Degrees F |
| Number of Rail Holes | 40 |
| Mounting Hole from Shaft End | 10 mm |
| Mounting Hole Center to Center | 25 mm |
| Mounting Hole Center to Shaft End | 13 mm |
| Mounting Hole Size | 3.5 mm |
| Overall Length | 1,000 mm |
| Overall Width | 12 mm |
| Overall Height | 8 mm |
| Weight | 220 g |
| For Use With | Mini-Rail Carriages |
| Type | Mini-Rail |
| Rail Material | Aluminum |
| Rail Finish | Ceramic Coated |
| Series | MR |
| Includes Rollers | Rollers Not Included |
| Requires Lubrication | Lubricant Not Required |
| System of Measurement | Metric |
| Rail Type | Profile |
| Country of Origin | United States |
