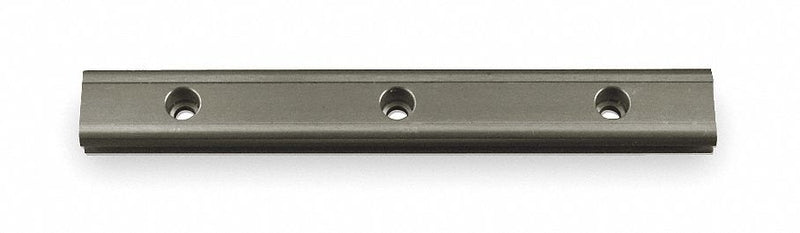

PBC Linear MR20R-1000 Miniature Profile Guide, Size 20, 1,000 mm Length, 20 mm Width, Aluminum
Original price
$218.74
-
Original price
$218.74
Original price
$218.74
$218.74
-
$218.74
Current price
$218.74
Miniature Profile Guide, Overall Length 1,000 mm, Overall Width 20 mm, Overall Height 13.4 mm, Rail Material Aluminum, Manufacturer Size 20, Number of Mounting Holes 18, Rail Finish Ceramic Coated, Rail Type Profile, System of Measurement Metric, For Use With Mini-Rail Carriages, Mounting Hole Center to Center 60 mm, Mounting Hole Center to Shaft End 30 mm, Series MR, Mounting Hole Size 6 mm
| Raceway | Ceramic Coated |
|---|---|
| Operating Temperature - Maximum | 400 Degrees F |
| Operating Temperature - Minimum | -400 Degrees F |
| Number of Rail Holes | 18 |
| Mounting Hole from Shaft End | 20 mm |
| Mounting Hole Center to Center | 60 mm |
| Mounting Hole Center to Shaft End | 30 mm |
| Mounting Hole Size | 6 mm |
| Overall Length | 1,000 mm |
| Overall Width | 20 mm |
| Overall Height | 13.4 mm |
| Weight | 480 g |
| For Use With | Mini-Rail Carriages |
| Type | Mini-Rail |
| Rail Material | Aluminum |
| Rail Finish | Ceramic Coated |
| Series | MR |
| Includes Rollers | Rollers Not Included |
| Requires Lubrication | Lubricant Not Required |
| System of Measurement | Metric |
| Rail Type | Profile |
| Country of Origin | United States |
