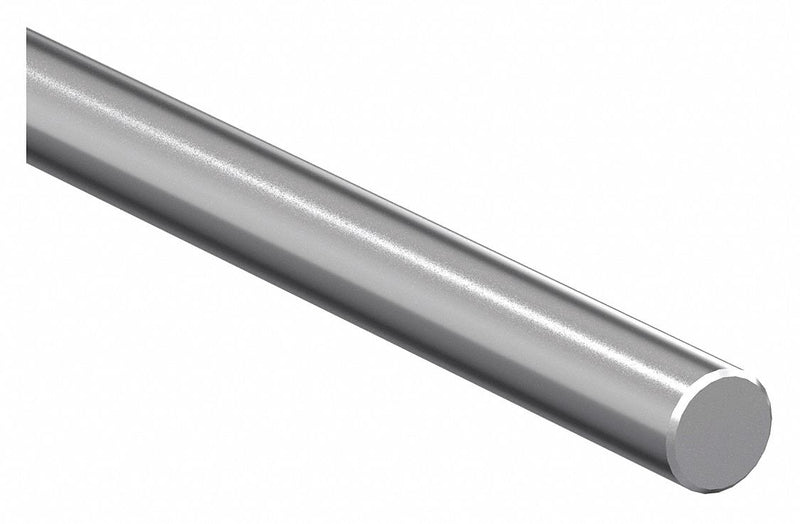

PBC Linear NIL08-060.000 Linear Shaft, Solid, 1/2 in Dia, 60 in Lg, Carbon Steel, Polished
Original price
$146.66
-
Original price
$146.66
Original price
$146.66
$146.66
-
$146.66
Current price
$146.66
Linear Shaft, System of Measurement Inch, Diameter 1/2 in, Shaft Type Solid Shaft, End Type Plain Ends, Core Type Solid, Overall Length 60 in, Surface Hardness - Minimum 60 HRC, Material Carbon Steel, Finish Polished, Diameter Tolerance - Minimum -0.001 in, Diameter Tolerance - Maximum 0 in
| Material | Carbon Steel |
|---|---|
| Min. Surface Hardness | 60 RC |
| Temp. Range (F) | 0 Degrees - 400 Degrees F |
| Finish | Polished |
| For Use With | Linear Ball Bearings, Lined Bearings |
| Type | Solid Shaft |
| System of Measurement | Inch |
| Surface Roughness | 8 uin |
| Series | NIL |
| Shaft Type | Solid Shaft |
| Operating Temperature - Minimum | 0 Degrees F |
| Surface Hardness - Minimum | 60 HRC |
| Operating Temperature - Maximum | 400 Degrees F |
| Tolerance Class | L |
| Roughness | 8-12 uin RMS |
| End Type | Plain Ends |
| Core Type | Solid |
| Weight Per Inch | 0.055 lb |
| Country of Origin | United States |
