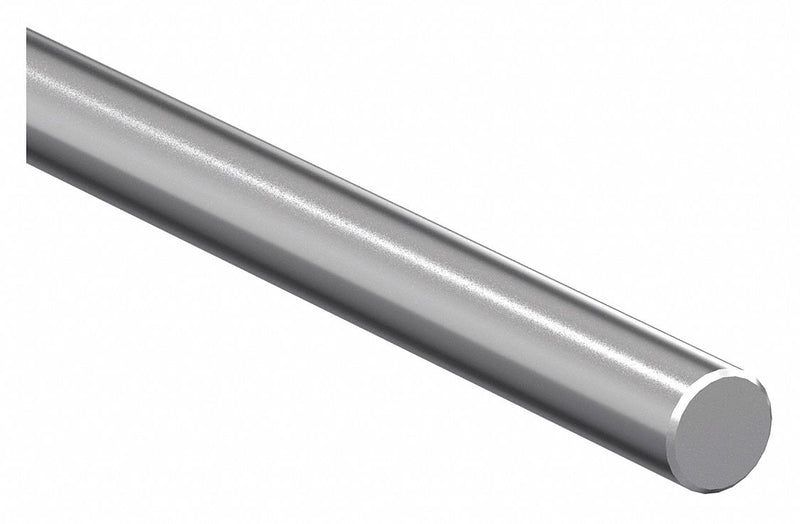

PBC Linear NIL12-009.000 Linear Shaft, Solid, 3/4 in Dia, 9 in Lg, Carbon Steel, Polished
Original price
$23.76
-
Original price
$23.76
Original price
$23.76
$23.76
-
$23.76
Current price
$23.76
Linear Shaft, System of Measurement Inch, Diameter 3/4 in, Shaft Type Solid Shaft, End Type Plain Ends, Core Type Solid, Overall Length 9 in, Surface Hardness - Minimum 60 HRC, Material Carbon Steel, Finish Polished, Diameter Tolerance - Minimum -0.001 in, Diameter Tolerance - Maximum 0 in
| Material | Carbon Steel |
|---|---|
| Min. Surface Hardness | 60 RC |
| Finish | Polished |
| Temp. Range (F) | 0 Degrees - 400 Degrees F |
| For Use With | Linear Ball Bearings, Lined Bearings |
| Type | Solid Shaft |
| System of Measurement | Inch |
| Surface Roughness | 8 uin |
| Roughness | 8-12 uin RMS |
| Tolerance Class | L |
| Core Type | Solid |
| End Type | Plain Ends |
| Surface Hardness - Minimum | 60 HRC |
| Shaft Type | Solid Shaft |
| Series | NIL |
| Operating Temperature - Minimum | 0 Degrees F |
| Operating Temperature - Maximum | 400 Degrees F |
| Weight Per Inch | 0.125 lb |
| Country of Origin | United States |
