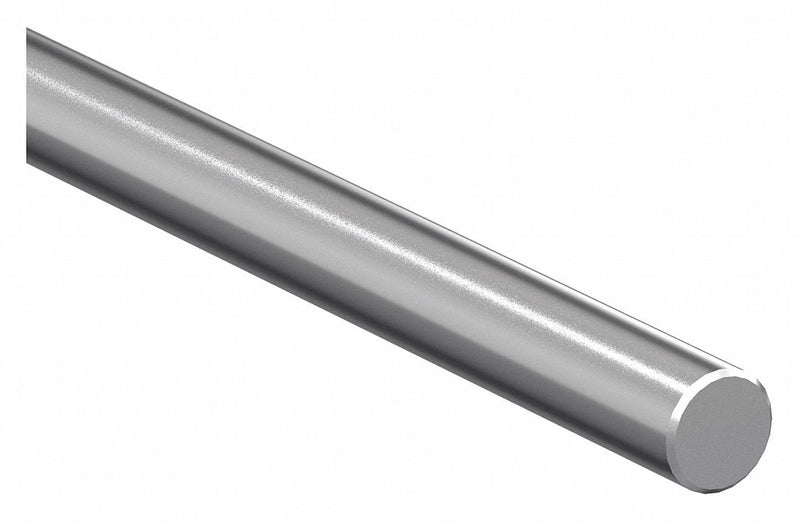

PBC Linear NIL16-018.000 Linear Shaft, Solid, 1 in Dia, 18 in Lg, Carbon Steel, Polished
Original price
$72.32
-
Original price
$72.32
Original price
$72.32
$72.32
-
$72.32
Current price
$72.32
Linear Shaft, System of Measurement Inch, Diameter 1 in, Shaft Type Solid Shaft, End Type Plain Ends, Core Type Solid, Overall Length 18 in, Surface Hardness - Minimum 60 HRC, Material Carbon Steel, Finish Polished, Diameter Tolerance - Minimum -0.001 in, Diameter Tolerance - Maximum 0 in
| Material | Carbon Steel |
|---|---|
| Min. Surface Hardness | 60 RC |
| Temp. Range (F) | 0 Degrees - 400 Degrees F |
| Finish | Polished |
| For Use With | Linear Ball Bearings, Lined Bearings |
| Type | Solid Shaft |
| System of Measurement | Inch |
| Surface Roughness | 8 uin |
| End Type | Plain Ends |
| Shaft Type | Solid Shaft |
| Tolerance Class | L |
| Series | NIL |
| Operating Temperature - Maximum | 400 Degrees F |
| Roughness | 8-12 uin RMS |
| Core Type | Solid |
| Operating Temperature - Minimum | 0 Degrees F |
| Surface Hardness - Minimum | 60 HRC |
| Weight Per Inch | 0.222 lb |
| Country of Origin | United States |
