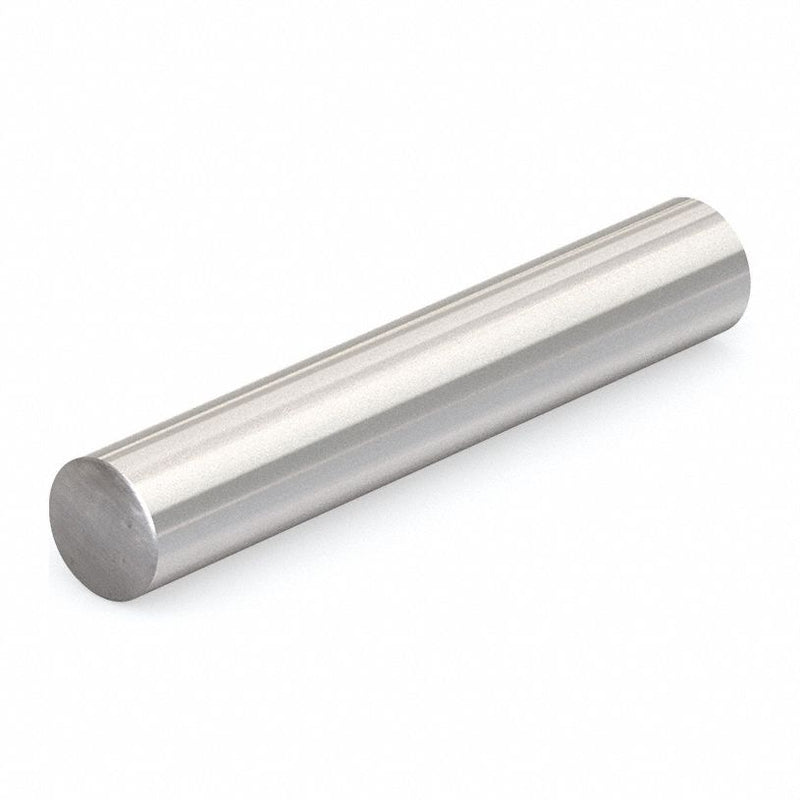

PBC Linear NIM20SS-0300-SL Linear Shaft, Solid Shaft, 20 mm Dia, 300 mm Lg, Stainless Steel
Original price
$131.09
-
Original price
$131.09
Original price
$131.09
$131.09
-
$131.09
Current price
$131.09
Linear Shaft, System of Measurement Metric, Diameter 20 mm, Shaft Type Solid Shaft, End Type Plain Ends, Core Type Solid, Overall Length 300 mm, Surface Hardness - Minimum 50 HRC, Material Stainless Steel, Finish Polished, Diameter Tolerance - Minimum -0.013 mm, Diameter Tolerance - Maximum 0 mm
| Material | Stainless Steel |
|---|---|
| Finish | Polished |
| For Use With | Linear Ball Bearings, Lined Bearings |
| Surface Roughness | 8-12 RMS |
| Product Type | Linear Shaft |
| Standards | ISO |
| Shaft Drilling | Undrilled |
| Shaft Material Finish | Polished |
| System of Measurement | Metric |
| Shaft Material Grade | 440 |
| Shaft Material | Stainless Steel |
| End Type | Plain Ends |
| Series | NIMSS |
| Roughness | 8-12 uin RMS |
| Shaft Type | Solid Shaft |
| Tolerance Class | M |
| Core Type | Solid |
| Surface Hardness - Minimum | 50 HRC |
| Weight Per Meter | 2.45 kg |
| Country of Origin | United States |
