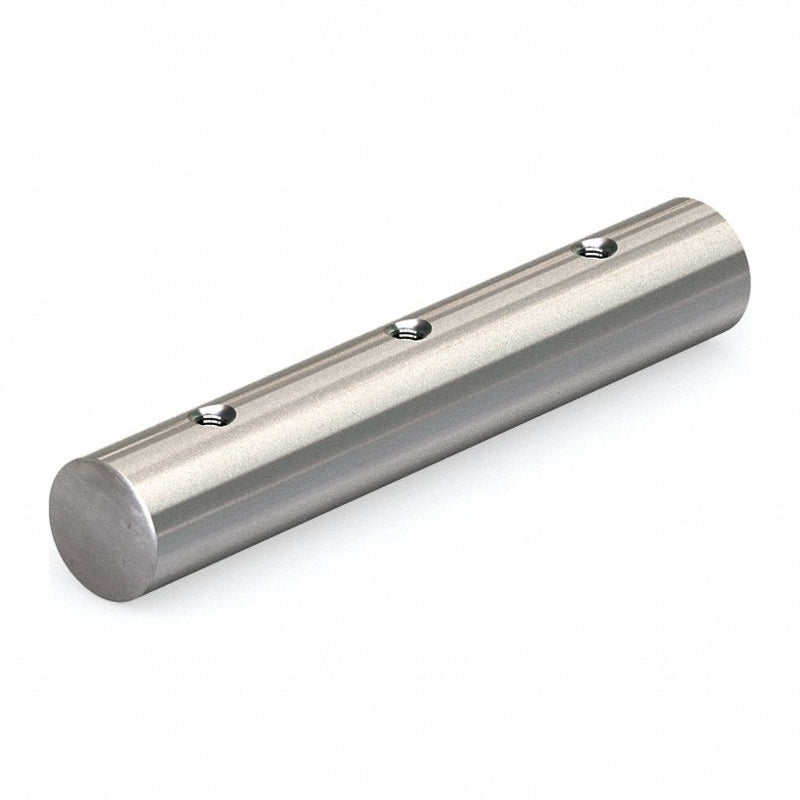

PBC Linear NIPDM12-0600-SL Pre-Drilled Linear Shaft, Polished Carbon Steel, 12 mm Dia, 600 mm Lg
Original price
$266.08
-
Original price
$266.08
Original price
$266.08
$266.08
-
$266.08
Current price
$266.08
Linear Shaft, System of Measurement Metric, Diameter 12 mm, Shaft Type Pre-Drilled Shaft, End Type Plain Ends, Core Type Solid, Overall Length 600 mm, Surface Hardness - Minimum 60 HRC, Material Steel, Finish Polished, Mounting Hole Thread Size M4 x 0.7, Diameter Tolerance - Minimum -0.011 mm, Diameter Tolerance - Maximum 0 mm, Mounting Hole Center to Center 120 mm, Mounting Hole Center to Shaft End 60 mm
| Material | Steel |
|---|---|
| For Use With | Linear Ball Bearings, Lined Bearings |
| Finish | Polished |
| Mounting Hole Center to Center | 120 mm |
| Shaft End to Hole | 60 mm |
| Standards | ISO |
| Shaft Material | Carbon Steel |
| Shaft Drilling | Pre-Drilled |
| Surface Roughness | 8-12 RMS |
| Shaft Hole Spacing | 120 mm |
| System of Measurement | Metric |
| Shaft Hardness | RC 60 |
| Shaft Material Grade | 1060 |
| Product Type | Linear Shaft |
| Shaft Material Finish | Polished |
| Roughness | 8-12 uin RMS |
| Series | NIPDM |
| End Type | Plain Ends |
| Surface Hardness - Minimum | 60 HRC |
| Shaft Type | Pre-Drilled Shaft |
| Mounting Hole Type | Tapped |
| Number of Mounting Holes | 5 |
| Core Type | Solid |
| Weight Per Meter | 0.89 kg |
| Mounting Hole Center to Shaft End | 60 mm |
| Country of Origin | United States |
