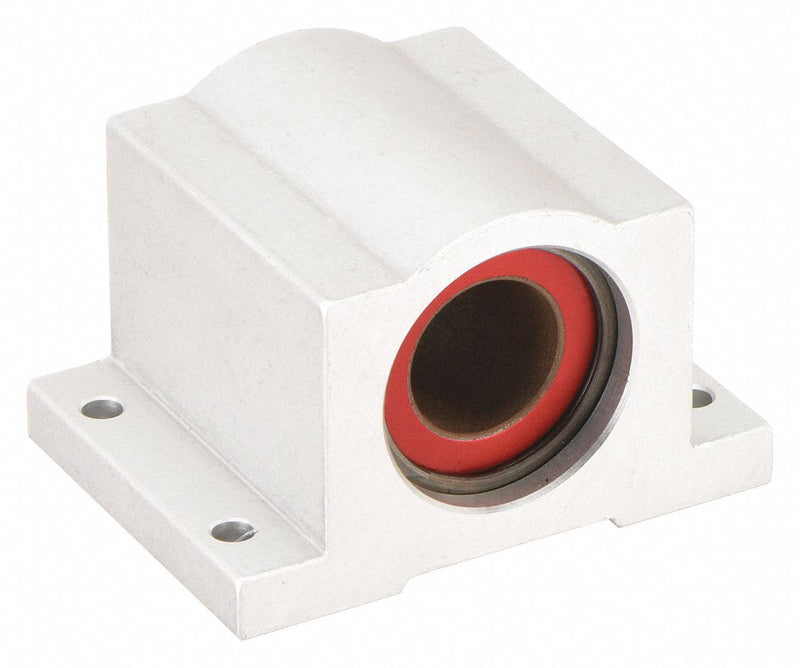

PBC Linear P04 Mounted Linear Bearing, Single, Closed Pillow Block, 1/4 in Inside Dia, Frelon Gold
Original price
$108.02
-
Original price
$108.02
Original price
$108.02
$108.02
-
$108.02
Current price
$108.02
Mounted Linear Bearing, System of Measurement Inch, Inside Diameter 1/4 in, Overall Length 1 1/4 in, Self-Alignment Self-Aligning, Liner Material Frelon(TM) Gold, Material Aluminum Alloy, Static Load Capacity 600 lbf, Dynamic Load Capacity 600 lbf, Steady State Speed 5 fps, Series Simplicity, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Housing Style Single, Pillow Block Type Closed, Locking Type Retaining Ring, Bolt Size #6, Overall Height 7/8 in
| Material | Aluminum Alloy |
|---|---|
| Accelerated Speed | 14 Feet/Second |
| Temp. Range (F) | 0 - 400 |
| Static Load Capacity (Lb.) | 600 lb |
| Retaining Ring | External |
| Type | Closed Pillow Block |
| Mounting Surface to Shaft Center (In.) | 0.437 in |
| Locking Type | Retaining Ring |
| Liner | Frelon(TM) Gold |
| Dynamic Load Capacity (Lb.) | 600 lb |
| Static Load Capacity (N) | 600 lbf |
| Lubrication | Self Lubricating |
| Self-Alignment | Self-Aligning |
| Dynamic Load Capacity (N) | 600 lbf |
| Bearing Type | Plain |
| Steady State Speed | 5 fps |
| Maximum Operating Temperature | 400 Degrees F |
| Minimum Operating Temperature | -400 Degrees F |
| Housing Style | Single |
| System of Measurement | Inch |
| Series | Simplicity |
| Pillow Block Type | Closed |
| Liner Material | Frelon(TM) Gold |
| Country of Origin | United States |
