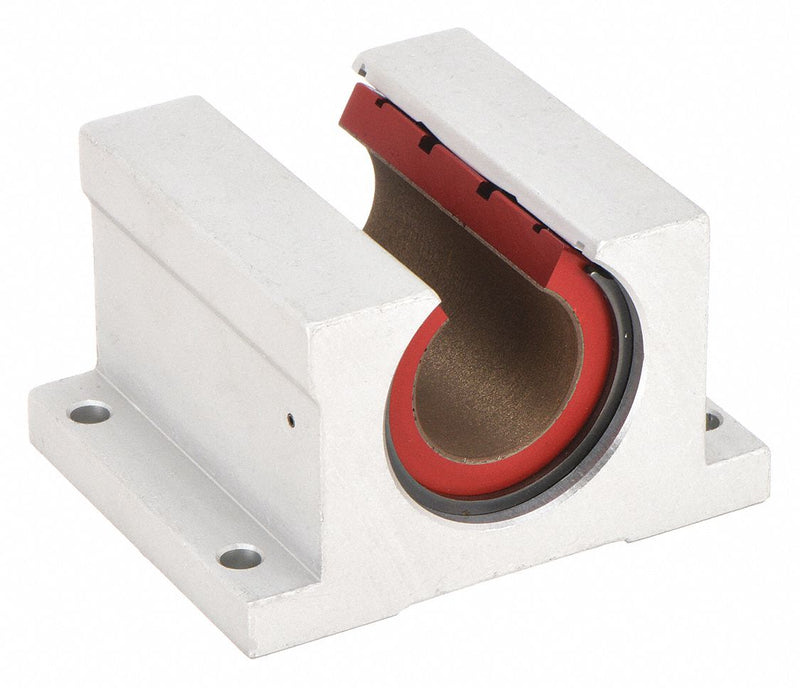

PBC Linear PN32 Mounted Linear Bearing, Single, Open Pillow Block, 2 in Inside Dia, Frelon Gold
Original price
$710.89
-
Original price
$710.89
Original price
$710.89
$710.89
-
$710.89
Current price
$710.89
Mounted Linear Bearing, System of Measurement Inch, Inside Diameter 2 in, Overall Length 4 3/4 in, Self-Alignment Self-Aligning, Liner Material Frelon(TM) Gold, Material Aluminum Alloy, Static Load Capacity 25,050 lbf, Dynamic Load Capacity 25,050 lbf, Steady State Speed 5 fps, Series PN, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Housing Style Single, Pillow Block Type Open, Locking Type Retaining Ring, Roll Pin, Bolt Size 3/8 in
| Material | Aluminum Alloy |
|---|---|
| Type | Open Pillow Block |
| Mounting Surface to Shaft Center (In.) | 2.125 in |
| Accelerated Speed | 14 Feet/Second |
| Slot Angle (Degrees) | 60 Degrees |
| Locking Type | Retaining Ring, Roll Pin |
| Dynamic Load Capacity (N) | 25,050 lbf |
| Steady State Speed | 5 fps |
| Bearing Type | Plain |
| Retaining Ring | External |
| Lubrication | Self Lubricating |
| Liner | Frelon(TM) Gold |
| Static Load Capacity (N) | 25,050 lbf |
| Static Load Capacity (Lb.) | 25,050 lb |
| Dynamic Load Capacity (Lb.) | 25,050 lb |
| Self-Alignment | Self-Aligning |
| Temp. Range (F) | 0 - 400 |
| System of Measurement | Inch |
| Housing Style | Single |
| Series | PN |
| Minimum Operating Temperature | -400 Degrees F |
| Maximum Operating Temperature | 400 Degrees F |
| Slot Angle | 60 Degrees |
| Liner Material | Frelon(TM) Gold |
| Includes Seals | Seals Not Included |
| Pillow Block Type | Open |
| Country of Origin | United States |
