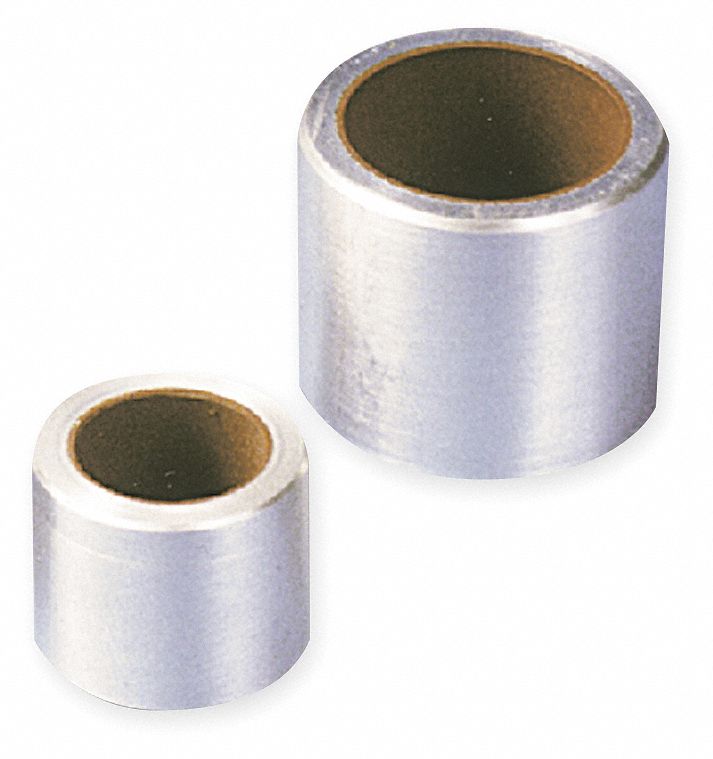

PBC Linear PS4044-24 Linear Sleeve Bearing, 2 1/2 in Inside Dia, 3 in Lg, Frelon Gold, Precision
Original price
$286.94
-
Original price
$286.94
Original price
$286.94
$286.94
-
$286.94
Current price
$286.94
Linear Sleeve Bearing, System of Measurement Inch, Running Clearance Class Precision, Inside Diameter 2 1/2 in, Outside Diameter 2 3/4 in, Overall Length 3 in, Static Load Capacity 22,364 lbf, Material Aluminum, Liner Frelon(TM) Gold, Self-Lubrication Self-Lubricating, Series PS, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Flange Diameter Not Applicable, Flange Thickness Not Applicable, Bearing Type Closed, Recommended Housing Bore 2.753 in
| Material | Aluminum |
|---|---|
| Max. Pv | 20,000 lb/sq in-fpm |
| Liner | Frelon(TM) Gold |
| Recommended Housing Bore | 2.753 in |
| Static Load Capacity | 22,364 lbf |
| Number of Pieces | 1500 |
| Lubrication | Self Lubricating |
| Type | Closed |
| System of Measurement | Inch |
| Maximum Operating Temperature | 400 Degrees F |
| Static Load Capacity (N) | 22,364 lbf |
| Minimum Operating Temperature | -400 Degrees F |
| Series | PS |
| Bearing Type | Closed |
| Running Clearance Class | Precision |
| Maximum PV | 20,000 lb/sq in-fpm |
| Self-Lubrication | Self-Lubricating |
| Country of Origin | United States |
