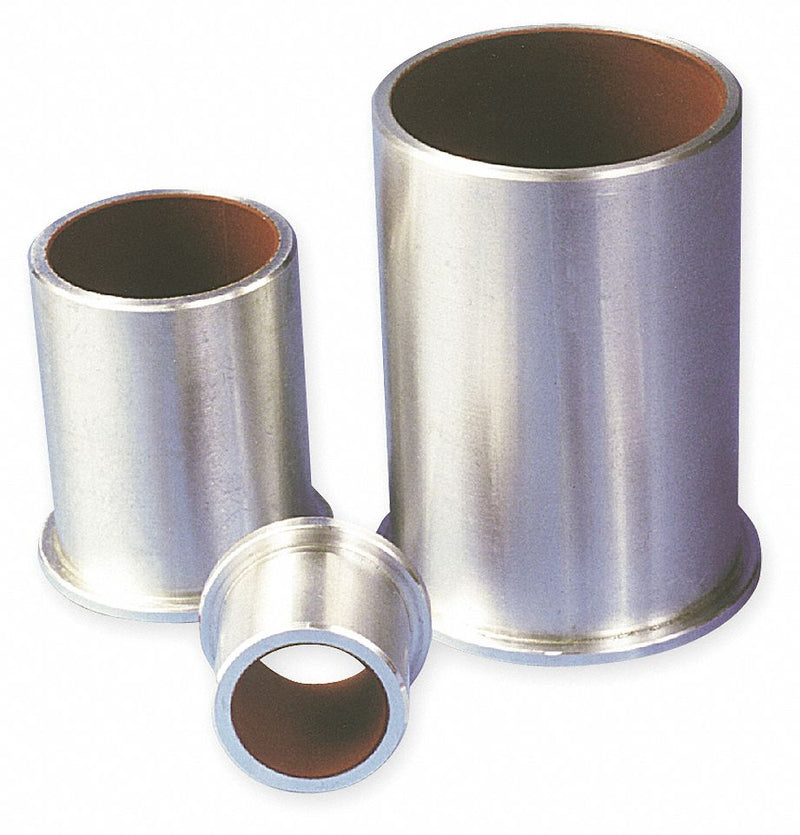

PBC Linear PSF1216-08 Linear Sleeve Flange Bearing, 3/4 in Inside Dia, 1 in Lg, Frelon Gold
Original price
$60.48
-
Original price
$60.48
Original price
$60.48
$60.48
-
$60.48
Current price
$60.48
Linear Sleeve Bearing, System of Measurement Inch, Inside Diameter 3/4 in, Outside Diameter 1 in, Overall Length 1 in, Static Load Capacity 2,210 lbf, Material Aluminum, Liner Frelon(TM) Gold, Self-Lubrication Self-Lubricating, Series PSF, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Flange Diameter 1 1/4 in, Flange Thickness 1/8 in, Bearing Type Closed, Recommended Housing Bore 1.002 in, Maximum PV 20,000 lb/sq in-fpm, Color Not Applicable
| Material | Aluminum |
|---|---|
| Max. Pv | 20,000 lb/sq in-fpm |
| Static Load Capacity | 2,210 lbf |
| Lubrication | Self Lubricating |
| Recommended Housing Bore | 1.002 in |
| Liner | Frelon(TM) Gold |
| Type | Closed |
| Minimum Operating Temperature | -400 Degrees F |
| Maximum Operating Temperature | 400 Degrees F |
| System of Measurement | Inch |
| Static Load Capacity (N) | 2,210 lbf |
| Series | PSF |
| Maximum PV | 20,000 lb/sq in-fpm |
| Self-Lubrication | Self-Lubricating |
| Bearing Type | Closed |
| Country of Origin | United States |
