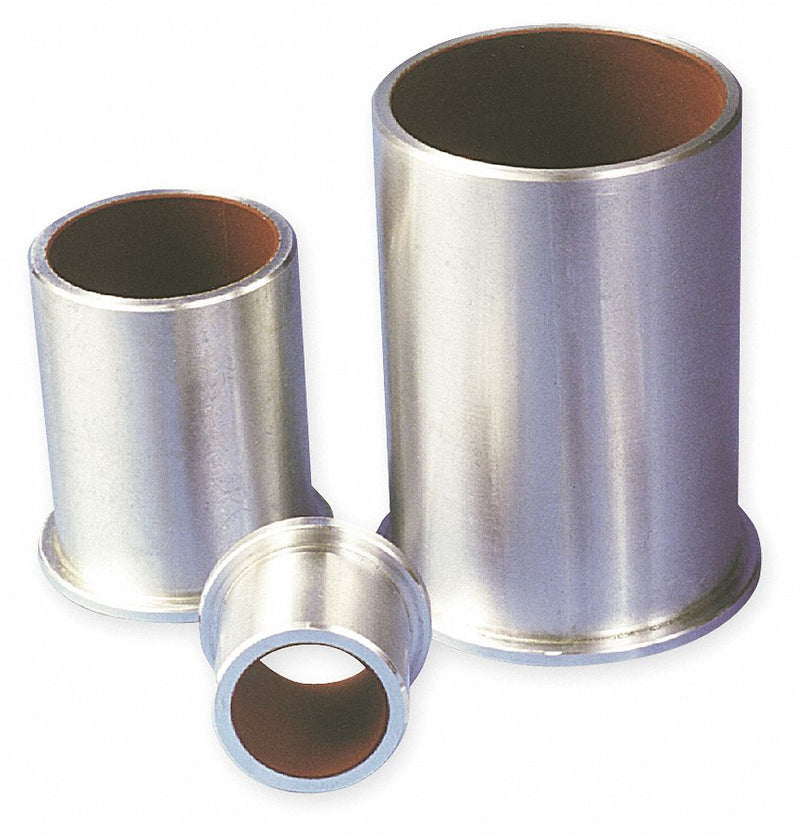

PBC Linear PSF2024-16 Linear Sleeve Flange Bearing, 1 1/4 in Inside Dia, 2 in Lg, Frelon Gold
Original price
$138.45
-
Original price
$138.45
Original price
$138.45
$138.45
-
$138.45
Current price
$138.45
Linear Sleeve Bearing, System of Measurement Inch, Inside Diameter 1 1/4 in, Outside Diameter 1 1/2 in, Overall Length 2 in, Static Load Capacity 7,434 lbf, Material Aluminum, Liner Frelon(TM) Gold, Self-Lubrication Self-Lubricating, Series PSF, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Flange Diameter 1 3/4 in, Flange Thickness 1/8 in, Bearing Type Closed, Recommended Housing Bore 1.502 in, Maximum PV 20,000 lb/sq in-fpm, Color Not Applicable
| Material | Aluminum |
|---|---|
| Max. Pv | 20,000 lb/sq in-fpm |
| Static Load Capacity | 7,434 lbf |
| Lubrication | Self Lubricating |
| Recommended Housing Bore | 1.502 in |
| Liner | Frelon(TM) Gold |
| Type | Closed |
| Minimum Operating Temperature | -400 Degrees F |
| Maximum Operating Temperature | 400 Degrees F |
| System of Measurement | Inch |
| Static Load Capacity (N) | 7,434 lbf |
| Series | PSF |
| Maximum PV | 20,000 lb/sq in-fpm |
| Self-Lubrication | Self-Lubricating |
| Bearing Type | Closed |
| Country of Origin | United States |
