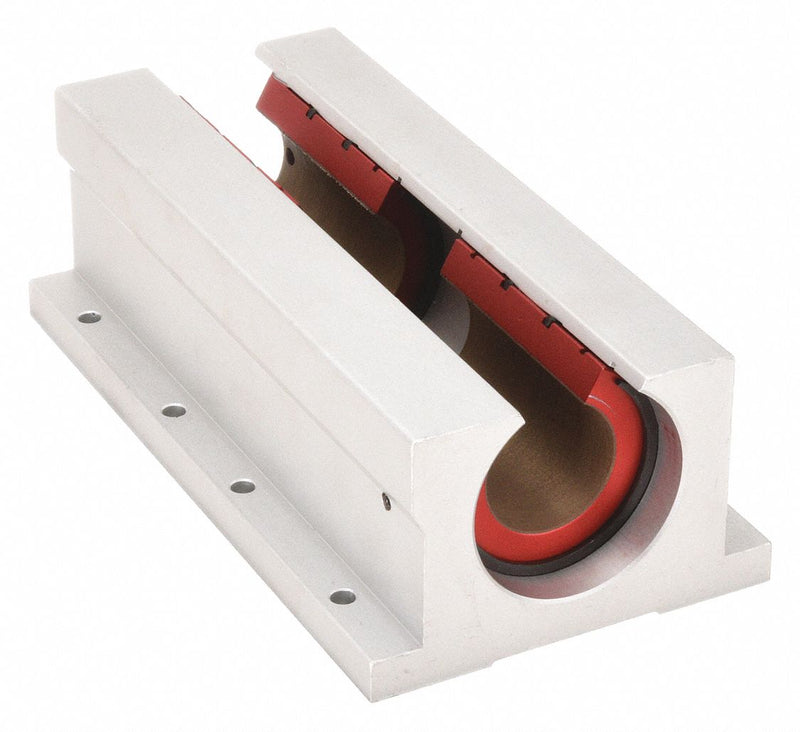

PBC Linear PWN20 Mounted Linear Bearing, Twin, Open Pillow Block, 1 1/4 in Inside Dia, Frelon Gold
Original price
$765.82
-
Original price
$765.82
Original price
$765.82
$765.82
-
$765.82
Current price
$765.82
Mounted Linear Bearing, System of Measurement Inch, Inside Diameter 1 1/4 in, Overall Length 7 1/2 in, Self-Alignment Self-Aligning, Liner Material Frelon(TM) Gold, Material Aluminum Alloy, Static Load Capacity 20,580 lbf, Dynamic Load Capacity 10,830 lbf, Steady State Speed 5 fps, Series PWN, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Housing Style Twin, Pillow Block Type Open, Locking Type Roll Pin, Bolt Size #10, Finish Clear Anodize
| Material | Aluminum Alloy |
|---|---|
| Retaining Ring | External |
| Self-Alignment | Self-Aligning |
| Slot Angle (Degrees) | 60 Degrees |
| Dynamic Load Capacity (Lb.) | 10,830 lb |
| Temp. Range (F) | 0 - 400 |
| Liner | Frelon(TM) Gold |
| Static Load Capacity (N) | 10,290 lbf |
| Steady State Speed | 5 fps |
| Dynamic Load Capacity (N) | 10,830 lbf |
| Bearing Type | Plain |
| Mounting Surface to Shaft Center (In.) | 1.5 in |
| Lubrication | Self Lubricating |
| Accelerated Speed | 14 Feet/Second |
| Type | Open Pillow Block |
| Static Load Capacity (Lb.) | 10,290 lb |
| Locking Type | Roll Pin |
| Finish | Clear Anodize |
| Housing Style | Twin |
| Minimum Operating Temperature | -400 Degrees F |
| Series | PWN |
| System of Measurement | Inch |
| Maximum Operating Temperature | 400 Degrees F |
| Dynamic Load Capacity | 10,830 lbf |
| Static Load Capacity | 20,580 lbf |
| Mounting Surface to Shaft Center | 1.5 in |
| Liner Material | Frelon(TM) Gold |
| Pillow Block Type | Open |
| Slot Angle | 60 Degrees |
| Country of Origin | United States |
