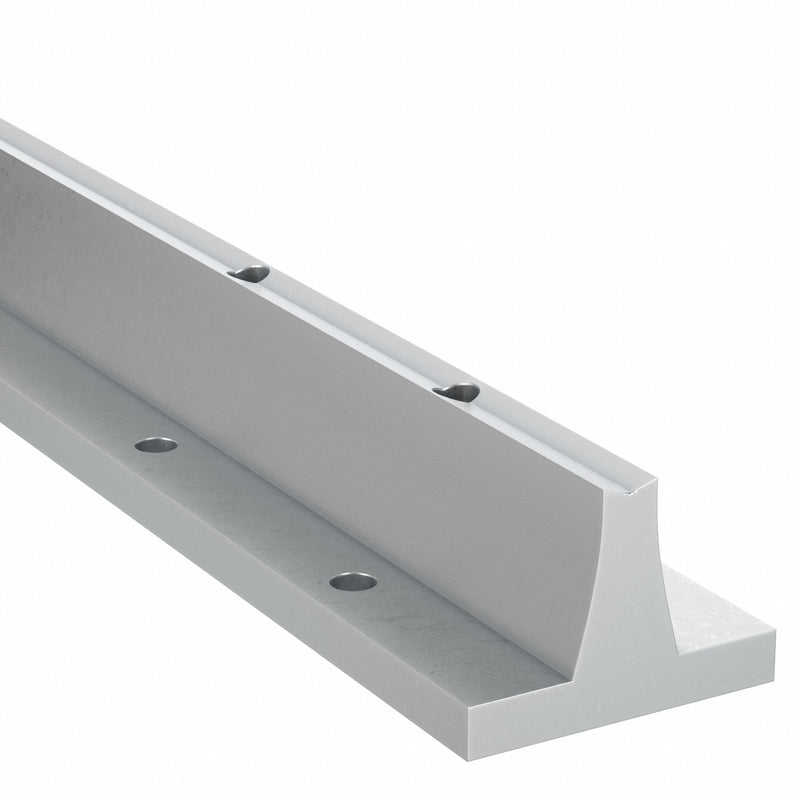

PBC Linear SR10PD-024.000 Pre-Drilled Linear Shaft Support Rail, Aluminum, 24 in Lg
Original price
$203.87
-
Original price
$203.87
Original price
$203.87
$203.87
-
$203.87
Current price
$203.87
Pre-Drilled Linear Shaft Support Rail, System of Measurement Inch, Overall Length 24 in, Material Aluminum, Finish Clear, Mounting Surface to Shaft Center 1.125 in, Overall Width 1.625 in, Overall Height Not Applicable, Mystery Dimension 1.313 in, Thread Size 8-32 x 0.875 in, Mounting Hole Center to Center 4 in, Mounting Hole Center to Shaft End 2 in, Base Height 0.25 in, Profile Type Standard Profile, Bolt Size #8, For Use With Simplicity FrelonGOLD(TM) Lined Bearings
| For Use With | Simplicity FrelonGOLD(TM) Lined Bearings |
|---|---|
| System of Measurement | Inch |
| Material | Aluminum |
| Mounting Holes | Clean |
| Temp. Range (F) | 0 Degrees - 400 Degrees F |
| Mounting Hole from Shaft End | 2 in |
| Mounting Surface to Shaft Center (In.) | 1.125 in |
| Mounting Hole Center to Center | 4 in |
| Finish | Clear |
| Type | Pre-Drilled Support Rail |
| Operating Temperature - Maximum | 400 Degrees F |
| Operating Temperature - Minimum | 0 Degrees F |
| Profile Type | Standard Profile |
| Mounting Surface to Shaft Center | 1.125 in |
| Mounting Hole Center to Shaft End | 2 in |
| Country of Origin | United States |
