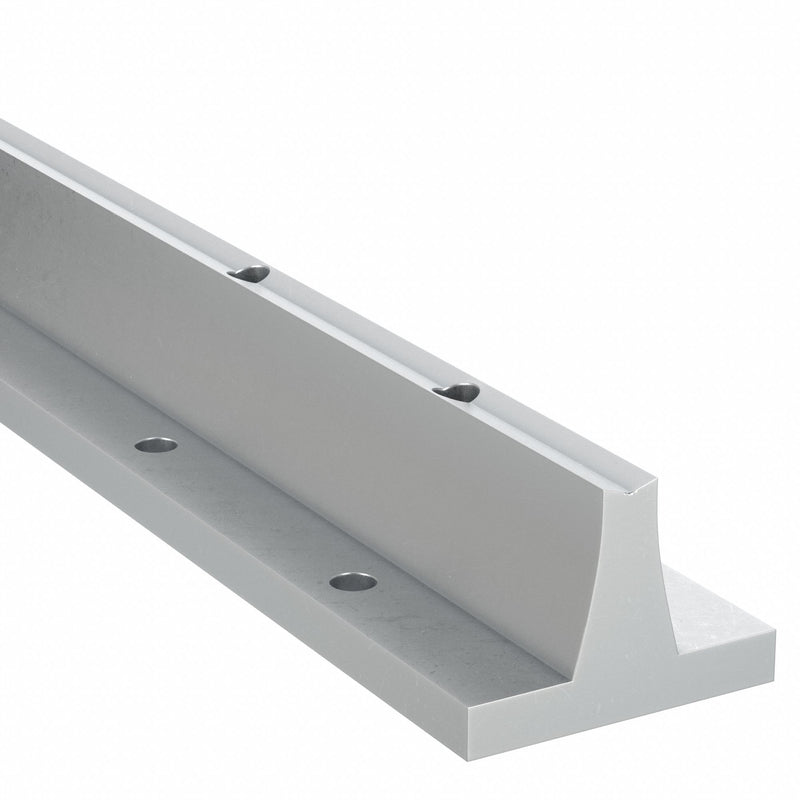

PBC Linear SR16PD-024.000 Pre-Drilled Linear Shaft Support Rail, Aluminum, 24 in Lg

PBC Linear SR16PD-024.000 Pre-Drilled Linear Shaft Support Rail, Aluminum, 24 in Lg

$280.63 - $280.63
$280.63
$280.63 - $280.63
$280.63

Pre-Drilled Linear Shaft Support Rail, System of Measurement Inch, Overall Length 24 in, Material Aluminum, Finish Clear, Mounting Surface to Shaft Center 1.75 in, Overall Width 2.125 in, Overall Height Not Applicable, Mystery Dimension 1.25 in, Thread Size 0.250 In.-20 x 1.500 in, Mounting Hole Center to Center 6 in, Mounting Hole Center to Shaft End 3 in, Base Height 0.25 in, Profile Type Standard Profile, Bolt Size 1/4, For Use With Simplicity FrelonGOLD(TM) Lined Bearings

For Use With Simplicity FrelonGOLD(TM) Lined Bearings
System of Measurement Inch
Material Aluminum
Mounting Holes Clean
Temp. Range (F) 0 Degrees - 400 Degrees F
Mounting Hole from Shaft End 3 in
Mounting Surface to Shaft Center (In.) 1.75 in
Mounting Hole Center to Center 6 in
Finish Clear
Type Pre-Drilled Support Rail
Operating Temperature - Maximum 400 Degrees F
Operating Temperature - Minimum 0 Degrees F
Profile Type Standard Profile
Mounting Surface to Shaft Center 1.75 in
Mounting Hole Center to Shaft End 3 in
Country of Origin United States
