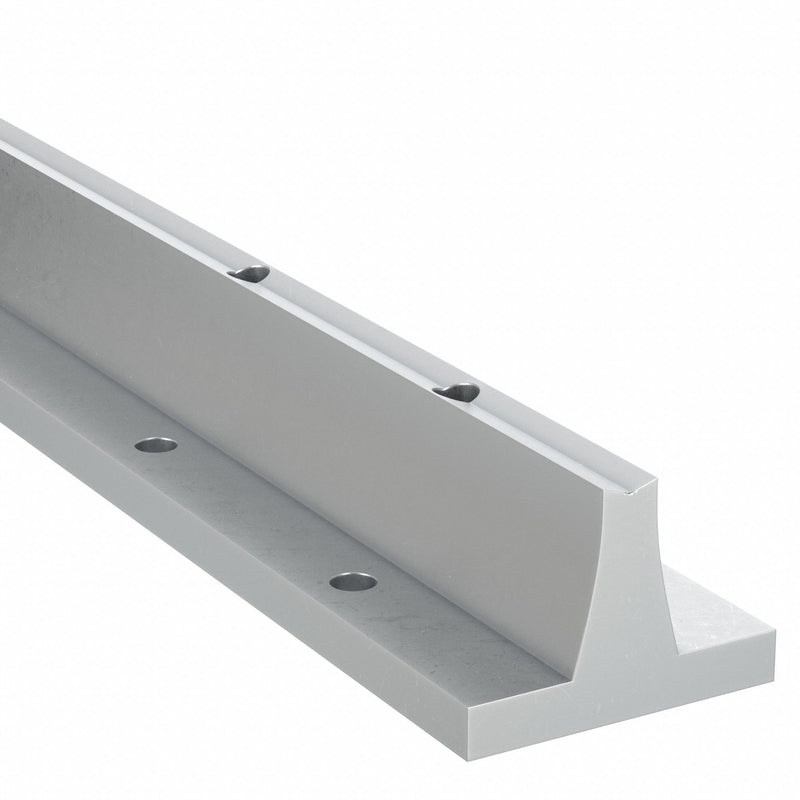

PBC Linear SR24PD-024.000 Pre-Drilled Linear Shaft Support Rail, Aluminum, 24 in Lg
Original price
$402.95
-
Original price
$402.95
Original price
$402.95
$402.95
-
$402.95
Current price
$402.95
Pre-Drilled Linear Shaft Support Rail, System of Measurement Inch, Overall Length 24 in, Material Aluminum, Finish Clear, Mounting Surface to Shaft Center 2.5 in, Overall Width 3 in, Overall Height Not Applicable, Mystery Dimension 1.75 in, Thread Size 0.375 In.-16 x 2.000 in, Mounting Hole Center to Center 8 in, Mounting Hole Center to Shaft End 4 in, Base Height 0.375 in, Profile Type Standard Profile, Bolt Size 5/16, For Use With Simplicity FrelonGOLD(TM) Lined Bearings
| For Use With | Simplicity FrelonGOLD(TM) Lined Bearings |
|---|---|
| System of Measurement | Inch |
| Material | Aluminum |
| Mounting Holes | Clean |
| Temp. Range (F) | 0 Degrees - 400 Degrees F |
| Mounting Hole from Shaft End | 4 in |
| Mounting Surface to Shaft Center (In.) | 2.5 in |
| Mounting Hole Center to Center | 8 in |
| Finish | Clear |
| Type | Pre-Drilled Support Rail |
| Operating Temperature - Maximum | 400 Degrees F |
| Operating Temperature - Minimum | 0 Degrees F |
| Profile Type | Standard Profile |
| Mounting Surface to Shaft Center | 2.5 in |
| Mounting Hole Center to Shaft End | 4 in |
| Country of Origin | United States |
