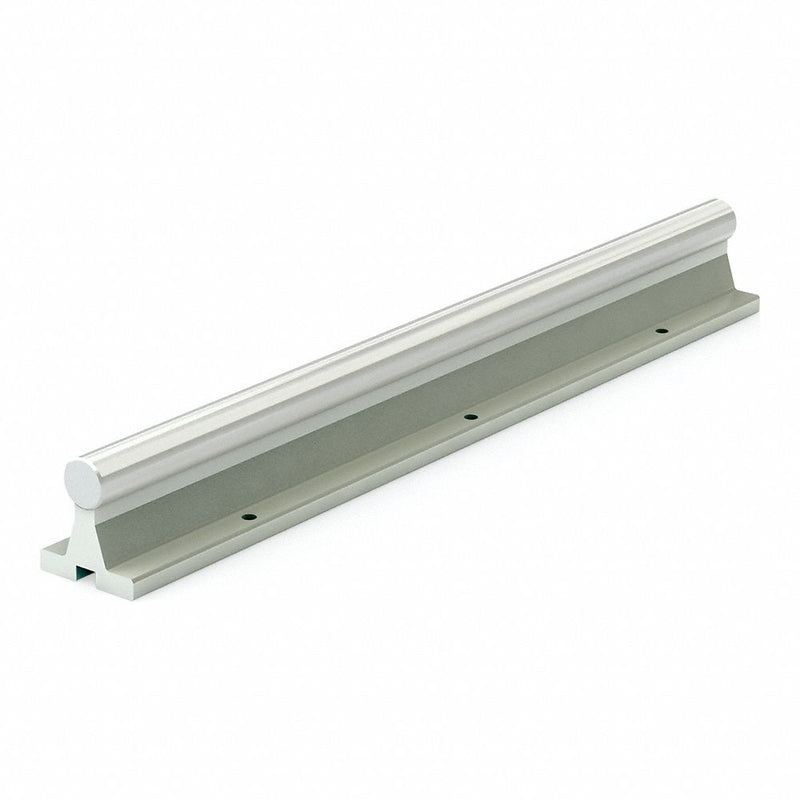

PBC Linear SRAM40SS-0400-SL Linear Metric Shaft Assembly, 40 mm Shaft Dia, 400 mm Lg, Stainless Steel
Original price
$4,384.85
-
Original price
$4,384.85
Original price
$4,384.85
$4,384.85
-
$4,384.85
Current price
$4,384.85
Linear Metric Shaft Assembly, System of Measurement Metric, Shaft Diameter 40 mm, Shaft Length 400 mm, Shaft Hardness RC 60, Shaft Material Stainless Steel, Center Height 64 mm, Rail Base Overall Width 78 mm, Compatible Series FrelonGOLD(R) Linear Plane Bearings and Pillow Blocks, Shaft Material Grade 440, Shaft Drilling Pre-Drilled, Shaft Hole Spacing 200 mm, Shaft End to Hole 100 mm, Shaft Hole Thread Size M10, Support Rail Drilling Pre-Drilled, Rail Top Width 17.46 mm
| For Use With | FrelonGOLD(R) Linear Plane Bearings and Pillow Blocks |
|---|---|
| Shaft Material Grade | 440 |
| Shaft Material | Stainless Steel |
| Rail End to Hole | 100 mm |
| System of Measurement | Metric |
| Product Type | Linear Shaft Support Rail Assembly |
| Support Rail Material | Aluminum |
| Shaft Drilling | Pre-Drilled |
| Shaft Hole Spacing | 200 mm |
| Standards | ISO |
| Support Rail Drilling | Pre-Drilled |
| Shaft Hardness | RC 60 |
| Compatible Series | FrelonGOLD(R) Linear Plane Bearings and Pillow Blocks |
| Shaft End to Hole | 100 mm |
| Country of Origin | United States |
