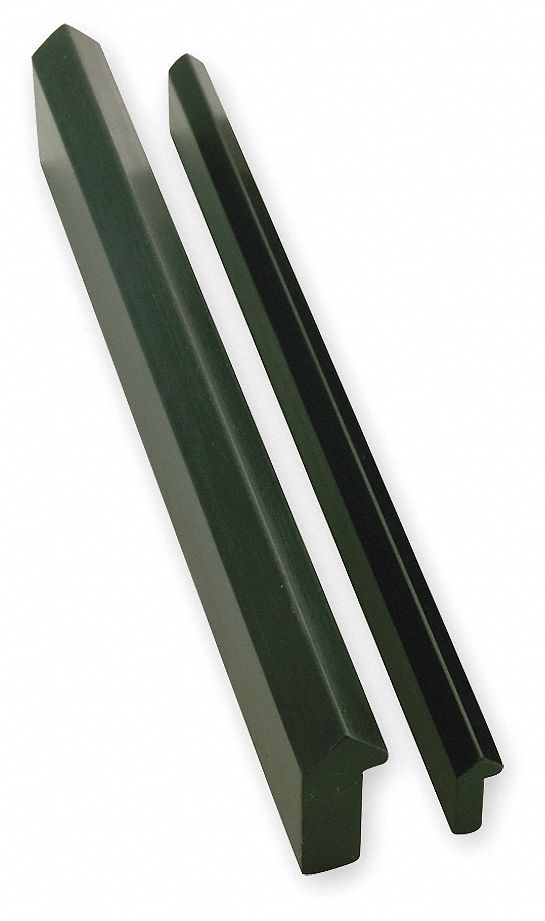

PBC Linear VR3-036.750 Undrilled Linear Rail, V-Guide, Size 3, 36.75 in Length, 0.343 in Width, Carbon Steel
Original price
$84.86
-
Original price
$84.86
Original price
$84.86
$84.86
-
$84.86
Current price
$84.86
Undrilled Linear Rail, Overall Length 36.75 in, Overall Width 0.343 in, Overall Height 0.851 in, Rail Material Carbon Steel, Manufacturer Size 3, Number of Mounting Holes Not Applicable, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center Not Applicable, Mounting Hole Center to Shaft End Not Applicable
| Overall Length | 36.75 in |
|---|---|
| Overall Width | 0.343 in |
| Overall Height | 0.851 in |
| Manufacturer Size | 3 |
| Undercut Depth | 0.253 in |
| Type | V-Guide |
| Rail Material | Carbon Steel |
| Temp. Range | 0 - 248F |
| Raceway | 52100 Steel |
| For Use With | V-Guide Wheels and Bushings |
| Rail Finish | Cold Roll |
| Raceway Material | 52100 Steel |
| Rail Type | Slide |
| Series | V-Guide |
| Load Direction | Axial, Radial |
| System of Measurement | Inch |
| Requires Lubrication | Lubricant Not Required |
| Edge Angle | 90 Degrees |
| Channel Material | Steel |
| Operating Temperature - Maximum | 180 Degrees F |
| Operating Temperature - Minimum | 0 Degrees F |
| Country of Origin | United States |
