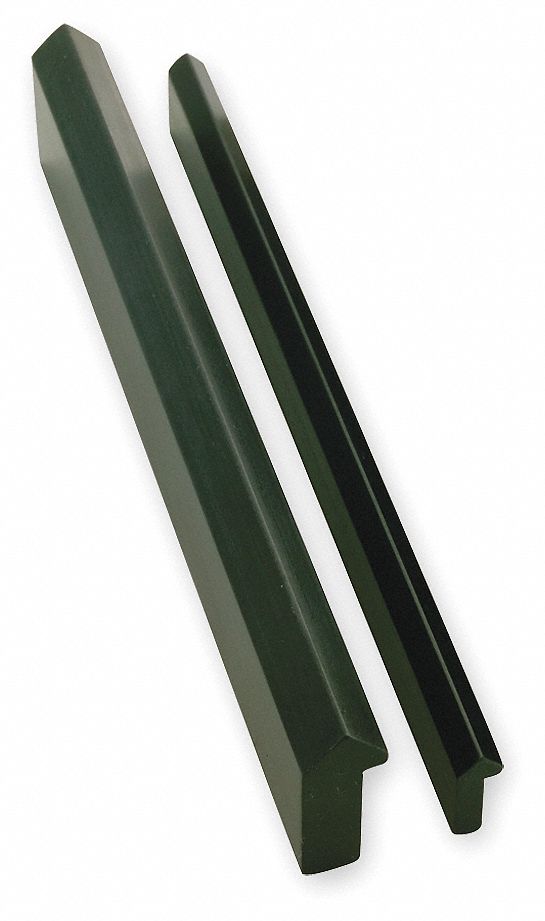

PBC Linear VR3-048.750 Undrilled Linear Rail, V-Guide, Size 3, 48.75 in Length, 0.343 in Width, Steel
Original price
$160.47
-
Original price
$160.47
Original price
$160.47
$160.47
-
$160.47
Current price
$160.47
Undrilled Linear Rail, Overall Length 48.75 in, Overall Width 0.343 in, Overall Height 0.851 in, Rail Material Steel, Manufacturer Size 3, Number of Mounting Holes Not Applicable, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center Not Applicable, Mounting Hole Center to Shaft End Not Applicable
| Type | V-Guide |
|---|---|
| Rail Material | Steel |
| Manufacturer Size | 3 |
| Overall Length | 48.75 in |
| Overall Width | 0.343 in |
| Overall Height | 0.851 in |
| Undercut Depth | 0.253 in |
| Temp. Range (F) | 0 - 248 |
| For Use With | V-Guide Wheels and Bushings |
| Raceway | 52100 Steel |
| Rail Finish | Cold Roll |
| Series | V-Guide |
| Minimum Operating Temperature | 0 Degrees F |
| Raceway Material | 52100 Steel |
| Maximum Operating Temperature | 248 Degrees F |
| Rail Type | Slide |
| Edge Angle | 90 Degrees |
| Load Direction | Axial, Radial |
| System of Measurement | Inch |
| Channel Material | Steel |
| Requires Lubrication | Lubricant Required |
| Country of Origin | United States |
