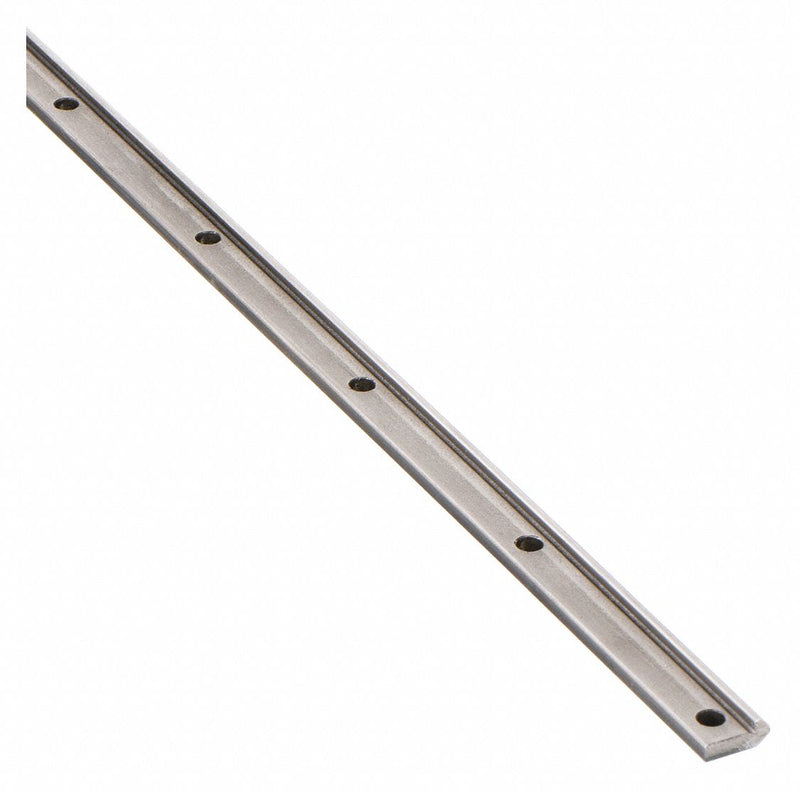

PBC Linear VRD1-012.500 Drilled Linear Rail, V-Guide, Size 1, 12.5 in Length, 0.187 in Width, Carbon Steel
Original price
$14.94
-
Original price
$14.94
Original price
$14.94
$14.94
-
$14.94
Current price
$14.94
Drilled Linear Rail, Overall Length 12.5 in, Overall Width 0.187 in, Overall Height 0.421 in, Rail Material Carbon Steel, Manufacturer Size 1, Number of Mounting Holes 7, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 2 in, Mounting Hole Center to Shaft End 1.25 in, Channel Material Steel, Series V-Guide
| Overall Length | 12.5 in |
|---|---|
| Overall Width | 0.187 in |
| Overall Height | 0.421 in |
| Thread Size | #6 or M3 |
| Mounting Hole Size | 0.156 in |
| Manufacturer Size | 1 |
| Undercut Depth | 0.127 in |
| Type | V-Guide |
| Rail Material | Carbon Steel |
| Number of Rail Holes | 7 |
| Screw Type | Low Profile Socket Head Cap |
| Rail Finish | Cold Roll |
| Temp. Range (F) | 0 - 248 |
| For Use With | V-Guide Wheels and Bushings |
| Raceway | 52100 Steel |
| Mounting Hole Center to Center | 2 in |
| Mounting Hole from Shaft End | 0.25 in |
| Temp. Range | 0 - 248F |
| Number of Mounting Holes | 7 |
| Raceway Material | 52100 Steel |
| Series | V-Guide |
| Rail Type | Slide |
| Maximum Operating Temperature | 248 Degrees F |
| Minimum Operating Temperature | 0 Degrees F |
| Operating Temperature - Maximum | 180 Degrees F |
| Edge Angle | 90 Degrees |
| Channel Material | Steel |
| Mounting Hole Center to Shaft End | 1.25 in |
| Load Direction | Axial, Radial |
| Operating Temperature - Minimum | 0 Degrees F |
| Requires Lubrication | Lubricant Not Required |
| System of Measurement | Inch |
| Country of Origin | United States |
