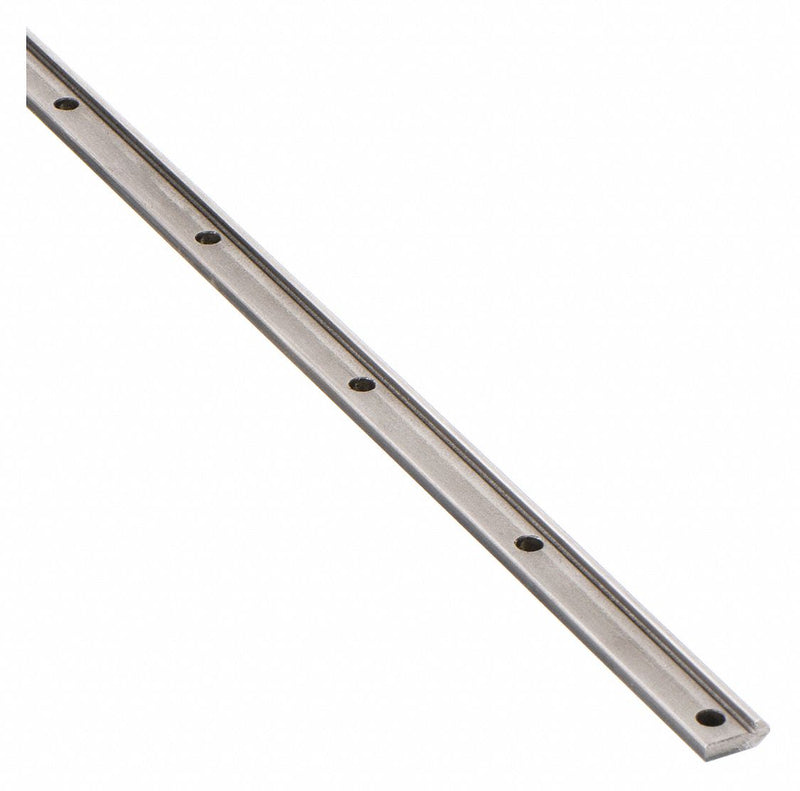

PBC Linear VRD1-024.500 Drilled Linear Rail, V-Guide, Size 1, 24.5 in Length, 0.187 in Width, Steel
Original price
$28.62
-
Original price
$28.62
Original price
$28.62
$28.62
-
$28.62
Current price
$28.62
Drilled Linear Rail, Overall Length 24.5 in, Overall Width 0.187 in, Overall Height 0.421 in, Rail Material Steel, Manufacturer Size 1, Number of Mounting Holes 12, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 2 in, Mounting Hole Center to Shaft End 1.25 in, Channel Material Steel, Series V-Guide
| Overall Length | 24.5 in |
|---|---|
| Overall Width | 0.187 in |
| Overall Height | 0.421 in |
| Thread Size | #6 or M3 |
| Mounting Hole Size | 0.156 in |
| Undercut Depth | 0.127 in |
| Manufacturer Size | 1 |
| Type | V-Guide |
| Rail Material | Steel |
| Number of Rail Holes | 13 |
| Mounting Hole Center to Center | 2 in |
| Raceway | 52100 Steel |
| Screw Type | Low Profile Socket Head Cap |
| Temp. Range (F) | 0 - 248 |
| For Use With | V-Guide Wheels and Bushings |
| Rail Finish | Cold Roll |
| Temp. Range | 0 - 248F |
| Mounting Hole from Shaft End | 0.25 in |
| Number of Mounting Holes | 12 |
| Maximum Operating Temperature | 248 Degrees F |
| Series | V-Guide |
| Rail Type | Slide |
| Minimum Operating Temperature | 0 Degrees F |
| Raceway Material | 52100 Steel |
| Operating Temperature - Maximum | 180 Degrees F |
| Load Direction | Axial, Radial |
| Mounting Hole Center to Shaft End | 1.25 in |
| System of Measurement | Inch |
| Channel Material | Steel |
| Operating Temperature - Minimum | 0 Degrees F |
| Requires Lubrication | Lubricant Not Required |
| Edge Angle | 90 Degrees |
| Country of Origin | United States |
