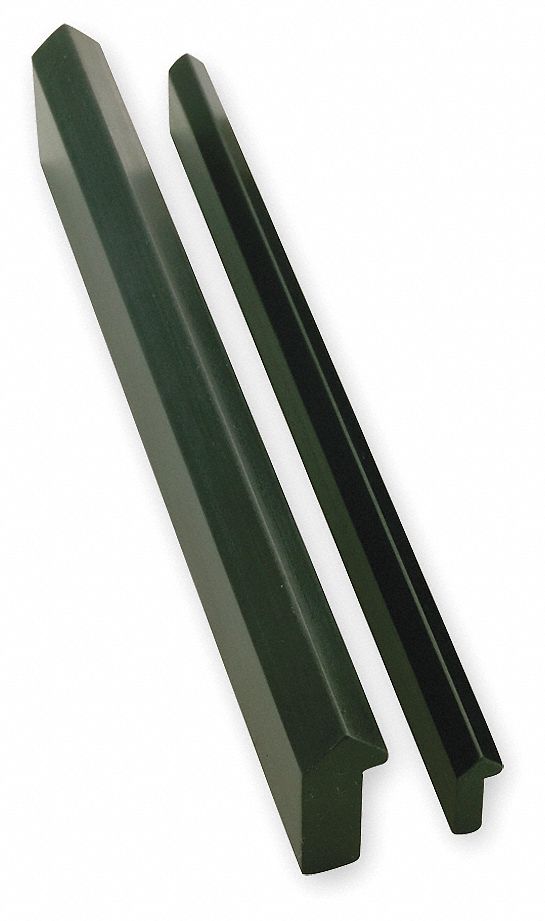

PBC Linear VRD1-048.500 Drilled Linear Rail, V-Guide, Size 1, 48.5 in Length, 0.187 in Width, Carbon Steel
Original price
$102.64
-
Original price
$102.64
Original price
$102.64
$102.64
-
$102.64
Current price
$102.64
Drilled Linear Rail, Overall Length 48.5 in, Overall Width 0.187 in, Overall Height 0.421 in, Rail Material Carbon Steel, Manufacturer Size 1, Number of Mounting Holes 25, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 2 in, Mounting Hole Center to Shaft End 1.25 in, Channel Material Steel, Series V-Guide
| Type | V-Guide |
|---|---|
| Rail Material | Carbon Steel |
| Manufacturer Size | 1 |
| Overall Length | 48.5 in |
| Overall Width | 0.187 in |
| Overall Height | 0.421 in |
| Mounting Hole Size | 0.156 in |
| Thread Size | #6 or M3 |
| Undercut Depth | 0.127 in |
| Number of Rail Holes | 25 |
| Screw Type | Low Profile Socket Head Cap |
| Temp. Range (F) | 0 - 248 |
| Rail Finish | Cold Roll |
| Mounting Hole Center to Center | 2 in |
| Raceway | 52100 Steel |
| Number of Mounting Holes | 25 |
| Series | V-Guide |
| Rail Type | Slide |
| System of Measurement | Inch |
| Edge Angle | 90 Degrees |
| Load Direction | Axial, Radial |
| Mounting Hole Center to Shaft End | 1.25 in |
| Channel Material | Steel |
| Requires Lubrication | Lubricant Not Required |
| Country of Origin | United States |
