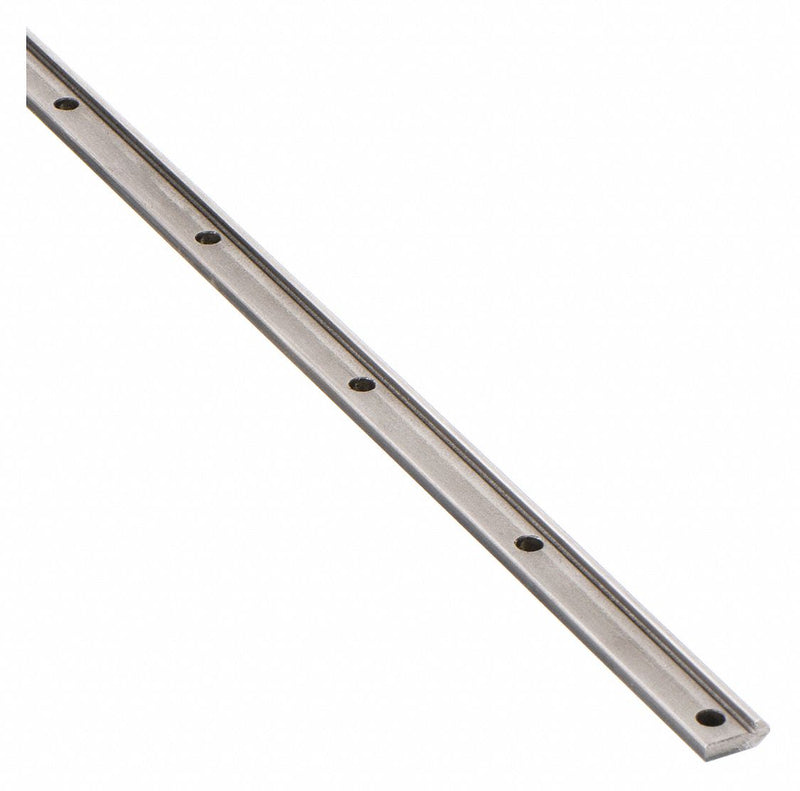

PBC Linear VRD2-012.630 Drilled Linear Rail, V-Guide, Size 2, 12.63 in Length, 0.25 in Width, Carbon Steel
Original price
$20.73
-
Original price
$20.73
Original price
$20.73
$20.73
-
$20.73
Current price
$20.73
Drilled Linear Rail, Overall Length 12.63 in, Overall Width 0.25 in, Overall Height 0.625 in, Rail Material Carbon Steel, Manufacturer Size 2, Number of Mounting Holes 5, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 3 in, Mounting Hole Center to Shaft End 1.815 in, Channel Material Steel, Series V-Guide
| Overall Length | 12.63 in |
|---|---|
| Overall Width | 0.25 in |
| Overall Height | 0.625 in |
| Thread Size | #10 or M6 |
| Mounting Hole Size | 0.203 in |
| Undercut Depth | 0.19 in |
| Manufacturer Size | 2 |
| Type | V-Guide |
| Rail Material | Carbon Steel |
| Raceway | 52100 Steel |
| Temp. Range (F) | 0 - 248 |
| Screw Type | Low Profile Socket Head Cap |
| Mounting Hole from Shaft End | 0.315 in |
| Number of Rail Holes | 5 |
| Mounting Hole Center to Center | 3 in |
| Rail Finish | Cold Roll |
| Temp. Range | 0 - 248F |
| For Use With | V-Guide Wheels and Bushings |
| Number of Mounting Holes | 5 |
| Series | V-Guide |
| Rail Type | Slide |
| Raceway Material | 52100 Steel |
| Minimum Operating Temperature | 0 Degrees F |
| Maximum Operating Temperature | 248 Degrees F |
| Load Direction | Axial, Radial |
| Operating Temperature - Minimum | 0 Degrees F |
| Mounting Hole Center to Shaft End | 1.815 in |
| Requires Lubrication | Lubricant Not Required |
| Edge Angle | 90 Degrees |
| Channel Material | Steel |
| System of Measurement | Inch |
| Operating Temperature - Maximum | 180 Degrees F |
| Country of Origin | United States |
