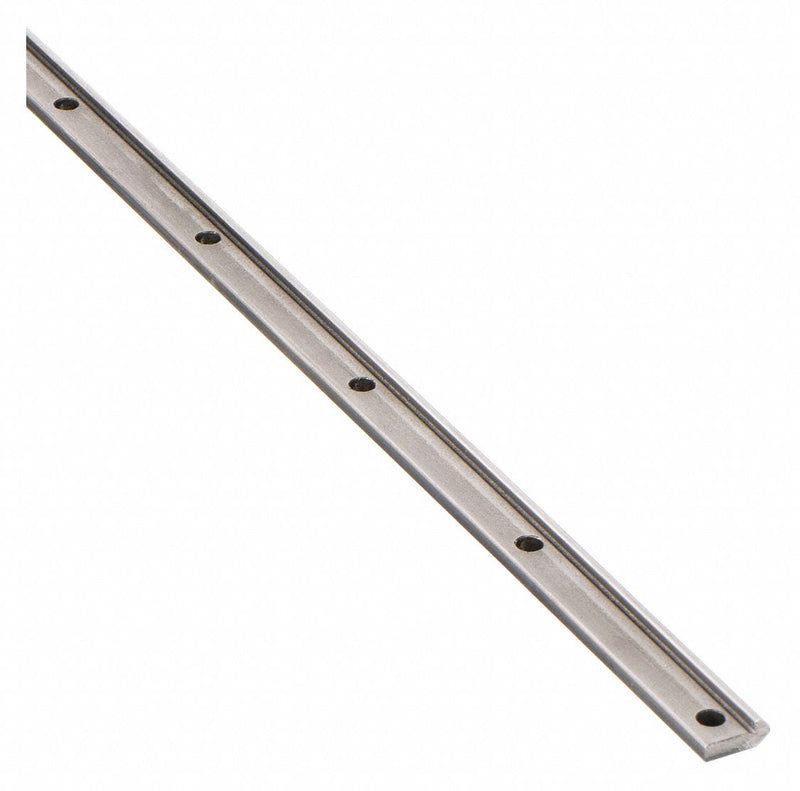

PBC Linear VRD2-024.630 Drilled Linear Rail, V-Guide, Size 2, 24.63 in Length, 0.25 in Width, Steel
Original price
$38.71
-
Original price
$38.71
Original price
$38.71
$38.71
-
$38.71
Current price
$38.71
Drilled Linear Rail, Overall Length 24.63 in, Overall Width 0.25 in, Overall Height 0.625 in, Rail Material Steel, Manufacturer Size 2, Number of Mounting Holes 9, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 3 in, Mounting Hole Center to Shaft End 1.815 in, Channel Material Steel, Series V-Guide
| Overall Length | 24.63 in |
|---|---|
| Overall Width | 0.25 in |
| Overall Height | 0.625 in |
| Thread Size | #10 or M6 |
| Mounting Hole Size | 0.203 in |
| Undercut Depth | 0.19 in |
| Manufacturer Size | 2 |
| Type | V-Guide |
| Rail Material | Steel |
| Temp. Range | 0 - 248F |
| Screw Type | Low Profile Socket Head Cap |
| Number of Rail Holes | 9 |
| For Use With | V-Guide Wheels and Bushings |
| Mounting Hole from Shaft End | 0.315 in |
| Rail Finish | Cold Roll |
| Temp. Range (F) | 0 - 248 |
| Raceway | 52100 Steel |
| Mounting Hole Center to Center | 3 in |
| Number of Mounting Holes | 9 |
| Series | V-Guide |
| Maximum Operating Temperature | 248 Degrees F |
| Raceway Material | 52100 Steel |
| Rail Type | Slide |
| Minimum Operating Temperature | 0 Degrees F |
| System of Measurement | Inch |
| Load Direction | Axial, Radial |
| Operating Temperature - Minimum | 0 Degrees F |
| Requires Lubrication | Lubricant Not Required |
| Mounting Hole Center to Shaft End | 1.815 in |
| Edge Angle | 90 Degrees |
| Channel Material | Steel |
| Operating Temperature - Maximum | 180 Degrees F |
| Country of Origin | United States |
