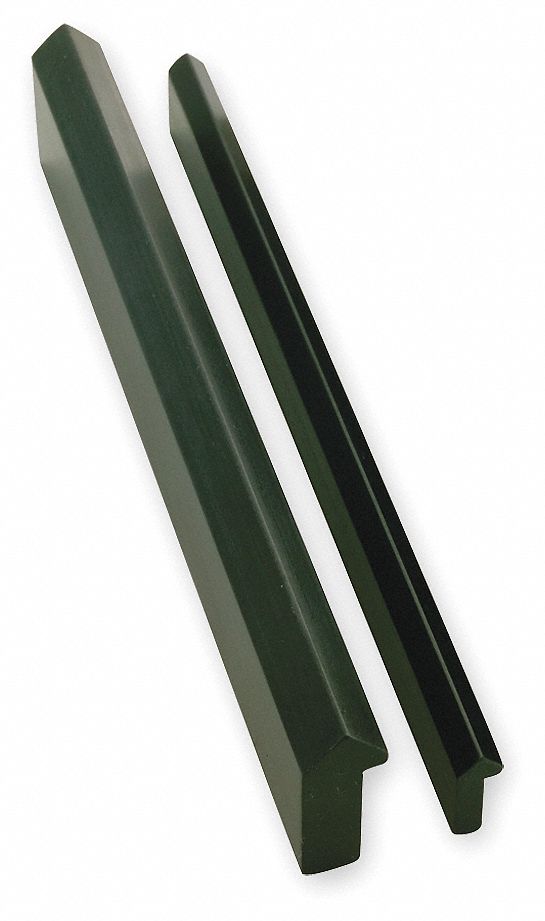

PBC Linear VRD2-036.630 Drilled Linear Rail, V-Guide, Size 2, 36.63 in Length, 0.25 in Width, Carbon Steel
Original price
$57.56
-
Original price
$57.56
Original price
$57.56
$57.56
-
$57.56
Current price
$57.56
Drilled Linear Rail, Overall Length 36.63 in, Overall Width 0.25 in, Overall Height 0.625 in, Rail Material Carbon Steel, Manufacturer Size 2, Number of Mounting Holes 13, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 3 in, Mounting Hole Center to Shaft End 1.815 in, Channel Material Steel, Series V-Guide
| Overall Length | 36.63 in |
|---|---|
| Overall Width | 0.25 in |
| Overall Height | 0.625 in |
| Thread Size | #10 or M6 |
| Mounting Hole Size | 0.203 in |
| Manufacturer Size | 2 |
| Undercut Depth | 0.19 in |
| Type | V-Guide |
| Rail Material | Carbon Steel |
| Screw Type | Low Profile Socket Head Cap |
| Mounting Hole from Shaft End | 0.315 in |
| Mounting Hole Center to Center | 3 in |
| Temp. Range | 0 - 248F |
| Number of Rail Holes | 13 |
| Rail Finish | Cold Roll |
| Raceway | 52100 Steel |
| For Use With | V-Guide Wheels and Bushings |
| Number of Mounting Holes | 13 |
| Series | V-Guide |
| Rail Type | Slide |
| Minimum Operating Temperature | 0 Degrees F |
| Raceway Material | 52100 Steel |
| Maximum Operating Temperature | 248 Degrees F |
| Operating Temperature - Minimum | 0 Degrees F |
| Load Direction | Axial, Radial |
| Requires Lubrication | Lubricant Not Required |
| System of Measurement | Inch |
| Operating Temperature - Maximum | 180 Degrees F |
| Mounting Hole Center to Shaft End | 1.815 in |
| Edge Angle | 90 Degrees |
| Channel Material | Steel |
| Country of Origin | United States |
