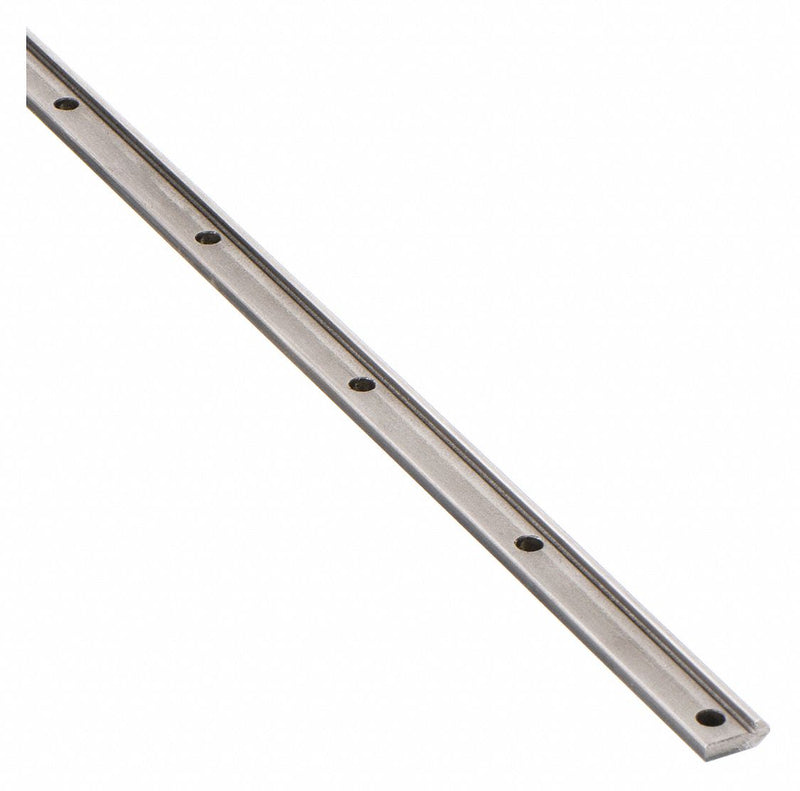

PBC Linear VRD2-048.630 Drilled Linear Rail, V-Guide, Size 2, 48.63 in Length, 0.25 in Width, Steel
Original price
$124.28
-
Original price
$124.28
Original price
$124.28
$124.28
-
$124.28
Current price
$124.28
Drilled Linear Rail, Overall Length 48.63 in, Overall Width 0.25 in, Overall Height 0.625 in, Rail Material Steel, Manufacturer Size 2, Number of Mounting Holes 17, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 3 in, Mounting Hole Center to Shaft End 1.815 in, Channel Material Steel, Series V-Guide
| Type | V-Guide |
|---|---|
| Rail Material | Steel |
| Rail Finish | Cold Roll |
| Temp. Range (F) | 0 - 248 |
| Screw Type | Low Profile Socket Head Cap |
| Number of Rail Holes | 17 |
| For Use With | V-Guide Wheels and Bushings |
| Raceway | 52100 Steel |
| Manufacturer Size | 2 |
| Undercut Depth | 0.19 in |
| Mounting Hole Size | 0.203 in |
| Thread Size | #10 or M6 |
| Overall Length | 48.63 in |
| Overall Width | 0.25 in |
| Overall Height | 0.625 in |
| Mounting Hole from Shaft End | 0.315 in |
| Mounting Hole Center to Center | 3 in |
| Number of Mounting Holes | 17 |
| Series | V-Guide |
| Rail Type | Slide |
| Raceway Material | 52100 Steel |
| Requires Lubrication | Lubricant Not Required |
| Mounting Hole Center to Shaft End | 1.815 in |
| Channel Material | Steel |
| Load Direction | Axial, Radial |
| Edge Angle | 90 Degrees |
| System of Measurement | Inch |
| Country of Origin | United States |
