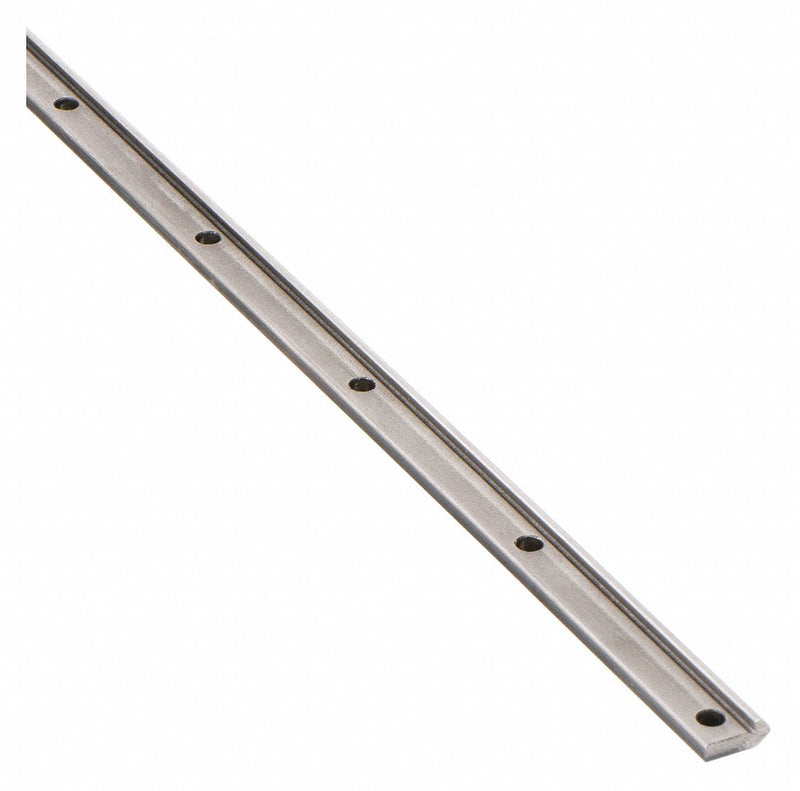

PBC Linear VRD3-012.750 Drilled Linear Rail, V-Guide, Size 3, 12.75 in Length, 0.343 in Width, Carbon Steel
Original price
$33.23
-
Original price
$33.23
Original price
$33.23
$33.23
-
$33.23
Current price
$33.23
Drilled Linear Rail, Overall Length 12.75 in, Overall Width 0.343 in, Overall Height 0.851 in, Rail Material Carbon Steel, Manufacturer Size 3, Number of Mounting Holes 5, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 3 in, Mounting Hole Center to Shaft End 1.875 in, Channel Material Steel, Series V-Guide
| Overall Length | 12.75 in |
|---|---|
| Overall Width | 0.343 in |
| Overall Height | 0.851 in |
| Mounting Hole Size | 0.281 in |
| Thread Size | 0.250 in or M6 |
| Manufacturer Size | 3 |
| Undercut Depth | 0.253 in |
| Type | V-Guide |
| Rail Material | Carbon Steel |
| Temp. Range | 0 - 248F |
| Screw Type | Low Profile Socket Head Cap |
| Mounting Hole Center to Center | 3 in |
| For Use With | V-Guide Wheels and Bushings |
| Raceway | 52100 Steel |
| Rail Finish | Cold Roll |
| Mounting Hole from Shaft End | 0.375 in |
| Temp. Range (F) | 0 - 248 |
| Number of Rail Holes | 5 |
| Number of Mounting Holes | 5 |
| Minimum Operating Temperature | 0 Degrees F |
| Raceway Material | 52100 Steel |
| Rail Type | Slide |
| Maximum Operating Temperature | 248 Degrees F |
| Series | V-Guide |
| Operating Temperature - Maximum | 180 Degrees F |
| Channel Material | Steel |
| Load Direction | Axial, Radial |
| Edge Angle | 90 Degrees |
| System of Measurement | Inch |
| Mounting Hole Center to Shaft End | 1.875 in |
| Operating Temperature - Minimum | 0 Degrees F |
| Requires Lubrication | Lubricant Not Required |
| Country of Origin | United States |
