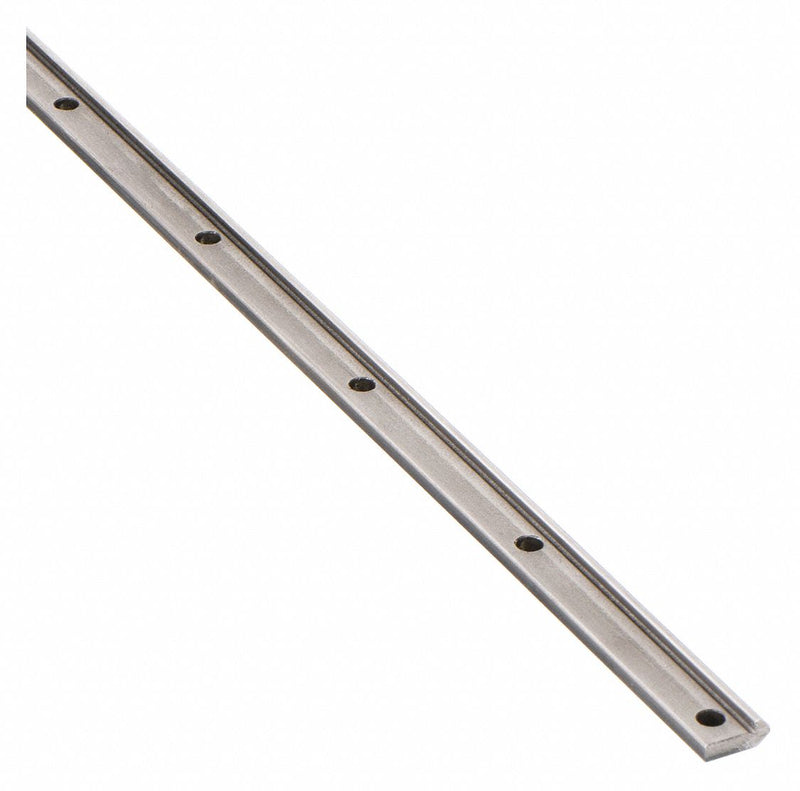

PBC Linear VRD3-024.750 Drilled Linear Rail, V-Guide, Size 3, 24.75 in Length, 0.343 in Width, Steel
Original price
$64.83
-
Original price
$64.83
Original price
$64.83
$64.83
-
$64.83
Current price
$64.83
Drilled Linear Rail, Overall Length 24.75 in, Overall Width 0.343 in, Overall Height 0.851 in, Rail Material Steel, Manufacturer Size 3, Number of Mounting Holes 9, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 3 in, Mounting Hole Center to Shaft End 1.875 in, Channel Material Steel, Series V-Guide
| Overall Length | 24.75 in |
|---|---|
| Overall Width | 0.343 in |
| Overall Height | 0.851 in |
| Mounting Hole Size | 0.281 in |
| Thread Size | 0.250 in or M6 |
| Manufacturer Size | 3 |
| Undercut Depth | 0.253 in |
| Type | V-Guide |
| Rail Material | Steel |
| Rail Finish | Cold Roll |
| Temp. Range | 0 - 248F |
| Number of Rail Holes | 9 |
| For Use With | V-Guide Wheels and Bushings |
| Raceway | 52100 Steel |
| Mounting Hole from Shaft End | 0.375 in |
| Screw Type | Low Profile Socket Head Cap |
| Mounting Hole Center to Center | 3 in |
| Temp. Range (F) | 0 - 248 |
| Number of Mounting Holes | 9 |
| Rail Type | Slide |
| Minimum Operating Temperature | 0 Degrees F |
| Maximum Operating Temperature | 248 Degrees F |
| Series | V-Guide |
| Raceway Material | 52100 Steel |
| Operating Temperature - Maximum | 180 Degrees F |
| Load Direction | Axial, Radial |
| Mounting Hole Center to Shaft End | 1.875 in |
| System of Measurement | Inch |
| Edge Angle | 90 Degrees |
| Requires Lubrication | Lubricant Not Required |
| Operating Temperature - Minimum | 0 Degrees F |
| Channel Material | Steel |
| Country of Origin | United States |
