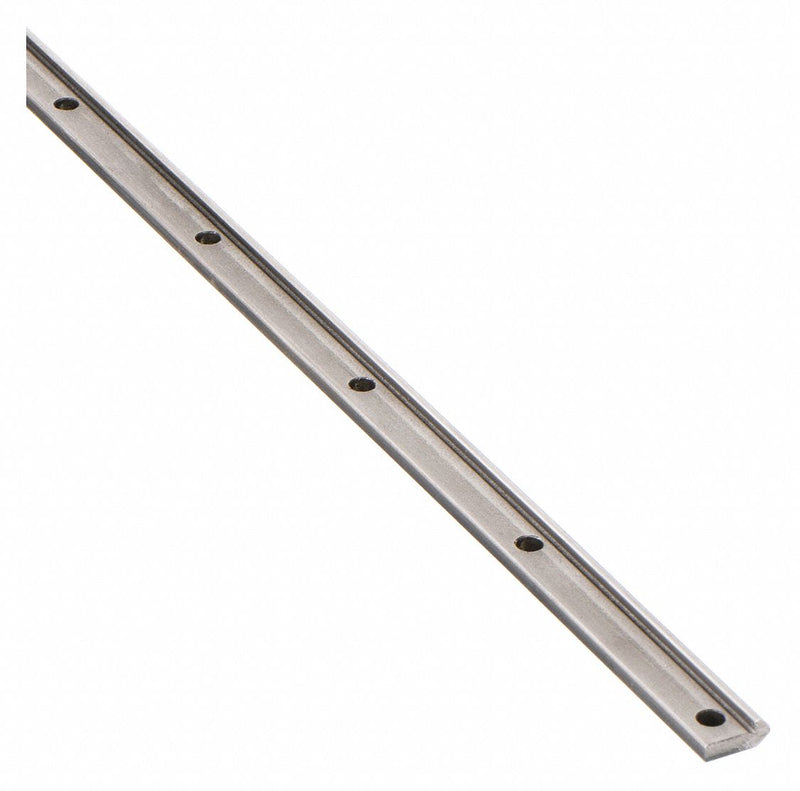

PBC Linear VRD3-036.750 Drilled Linear Rail, V-Guide, Size 3, 36.75 in Length, 0.343 in Width, Carbon Steel
Original price
$93.57
-
Original price
$93.57
Original price
$93.57
$93.57
-
$93.57
Current price
$93.57
Drilled Linear Rail, Overall Length 36.75 in, Overall Width 0.343 in, Overall Height 0.851 in, Rail Material Carbon Steel, Manufacturer Size 3, Number of Mounting Holes 13, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 3 in, Mounting Hole Center to Shaft End 1.875 in, Channel Material Steel, Series V-Guide
| Overall Length | 36.75 in |
|---|---|
| Overall Width | 0.343 in |
| Overall Height | 0.851 in |
| Mounting Hole Size | 0.281 in |
| Thread Size | 0.250 in or M6 |
| Undercut Depth | 0.253 in |
| Manufacturer Size | 3 |
| Type | V-Guide |
| Rail Material | Carbon Steel |
| Screw Type | Low Profile Socket Head Cap |
| Mounting Hole from Shaft End | 0.375 in |
| Raceway | 52100 Steel |
| For Use With | V-Guide Wheels and Bushings |
| Rail Finish | Cold Roll |
| Number of Rail Holes | 13 |
| Temp. Range | 0 - 248F |
| Mounting Hole Center to Center | 3 in |
| Number of Mounting Holes | 13 |
| Series | V-Guide |
| Rail Type | Slide |
| Maximum Operating Temperature | 248 Degrees F |
| Minimum Operating Temperature | 0 Degrees F |
| Raceway Material | 52100 Steel |
| Mounting Hole Center to Shaft End | 1.875 in |
| Operating Temperature - Maximum | 180 Degrees F |
| Channel Material | Steel |
| Operating Temperature - Minimum | 0 Degrees F |
| Load Direction | Axial, Radial |
| System of Measurement | Inch |
| Edge Angle | 90 Degrees |
| Requires Lubrication | Lubricant Not Required |
| Country of Origin | United States |
