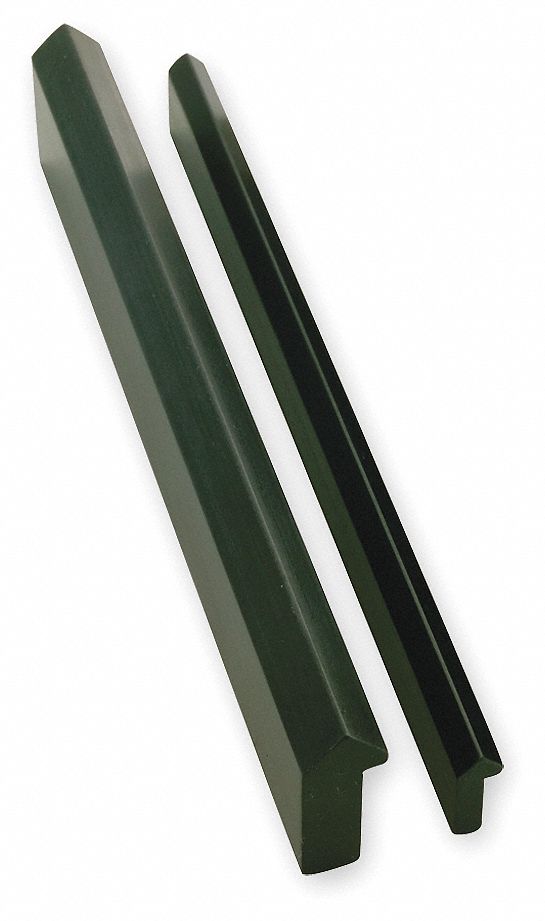

PBC Linear VRD3-048.750 Drilled Linear Rail, V-Guide, Size 3, 48.75 in Length, 0.343 in Width, Steel
Original price
$175.74
-
Original price
$175.74
Original price
$175.74
$175.74
-
$175.74
Current price
$175.74
Drilled Linear Rail, Overall Length 48.75 in, Overall Width 0.343 in, Overall Height 0.851 in, Rail Material Steel, Manufacturer Size 3, Number of Mounting Holes 17, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 3 in, Mounting Hole Center to Shaft End 1.875 in, Channel Material Steel, Series V-Guide
| Overall Length | 48.75 in |
|---|---|
| Overall Width | 0.343 in |
| Overall Height | 0.851 in |
| Mounting Hole Size | 0.281 in |
| Thread Size | 0.250 in or M6 |
| Undercut Depth | 0.253 in |
| Manufacturer Size | 3 |
| Type | V-Guide |
| Rail Material | Steel |
| Screw Type | Low Profile Socket Head Cap |
| Raceway | 52100 Steel |
| Mounting Hole from Shaft End | 0.75 in |
| Mounting Hole Center to Center | 3 in |
| Rail Finish | Cold Roll |
| For Use With | V-Guide Wheels and Bushings |
| Temp. Range (F) | 0 - 248 |
| Number of Rail Holes | 17 |
| Number of Mounting Holes | 17 |
| Rail Type | Slide |
| Series | V-Guide |
| Raceway Material | 52100 Steel |
| System of Measurement | Inch |
| Mounting Hole Center to Shaft End | 1.875 in |
| Edge Angle | 90 Degrees |
| Requires Lubrication | Lubricant Not Required |
| Channel Material | Steel |
| Load Direction | Axial, Radial |
| Country of Origin | United States |
