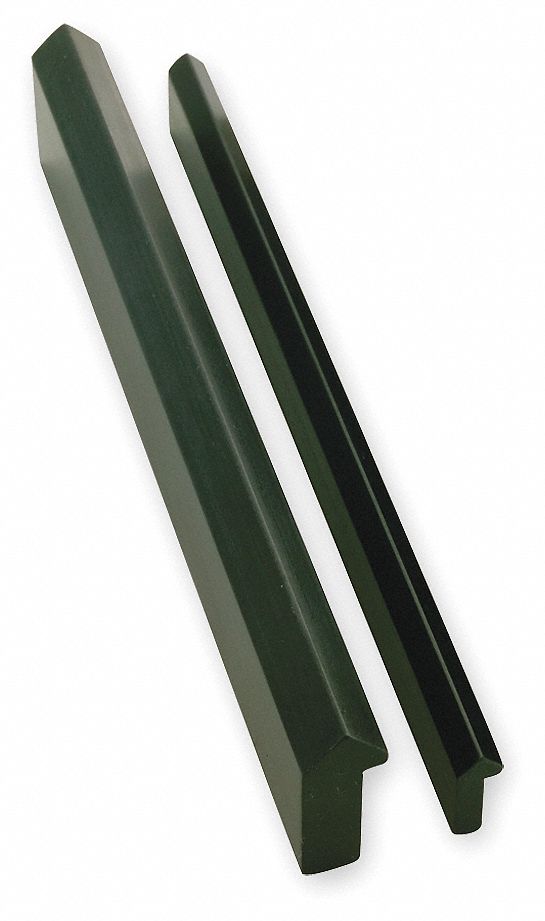

PBC Linear VRD4-013.000 Drilled Linear Rail, V-Guide, Size 4, 13 in Length, 0.437 in Width, Carbon Steel
Original price
$43.50
-
Original price
$43.50
Original price
$43.50
$43.50
-
$43.50
Current price
$43.50
Drilled Linear Rail, Overall Length 13 in, Overall Width 0.437 in, Overall Height 1.037 in, Rail Material Carbon Steel, Manufacturer Size 4, Number of Mounting Holes 4, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 4 in, Mounting Hole Center to Shaft End 2.5 in, Channel Material Steel, Series V-Guide
| Overall Length | 13 in |
|---|---|
| Overall Width | 0.437 in |
| Overall Height | 1.037 in |
| Mounting Hole Size | 0.344 in |
| Thread Size | 0.312 in or M8 |
| Manufacturer Size | 4 |
| Undercut Depth | 0.314 in |
| Type | V-Guide |
| Rail Material | Carbon Steel |
| For Use With | V-Guide Wheels and Bushings |
| Screw Type | Low Profile Socket Head Cap |
| Mounting Hole from Shaft End | 0.5 in |
| Mounting Hole Center to Center | 4 in |
| Number of Rail Holes | 4 |
| Raceway | 52100 Steel |
| Temp. Range | 0 - 248F |
| Temp. Range (F) | 0 - 248 |
| Rail Finish | Cold Roll |
| Number of Mounting Holes | 4 |
| Raceway Material | 52100 Steel |
| Maximum Operating Temperature | 248 Degrees F |
| Rail Type | Slide |
| Series | V-Guide |
| Minimum Operating Temperature | 0 Degrees F |
| Operating Temperature - Maximum | 180 Degrees F |
| Load Direction | Axial, Radial |
| Edge Angle | 90 Degrees |
| Operating Temperature - Minimum | 0 Degrees F |
| Mounting Hole Center to Shaft End | 2.5 in |
| Channel Material | Steel |
| System of Measurement | Inch |
| Requires Lubrication | Lubricant Not Required |
| Country of Origin | United States |
