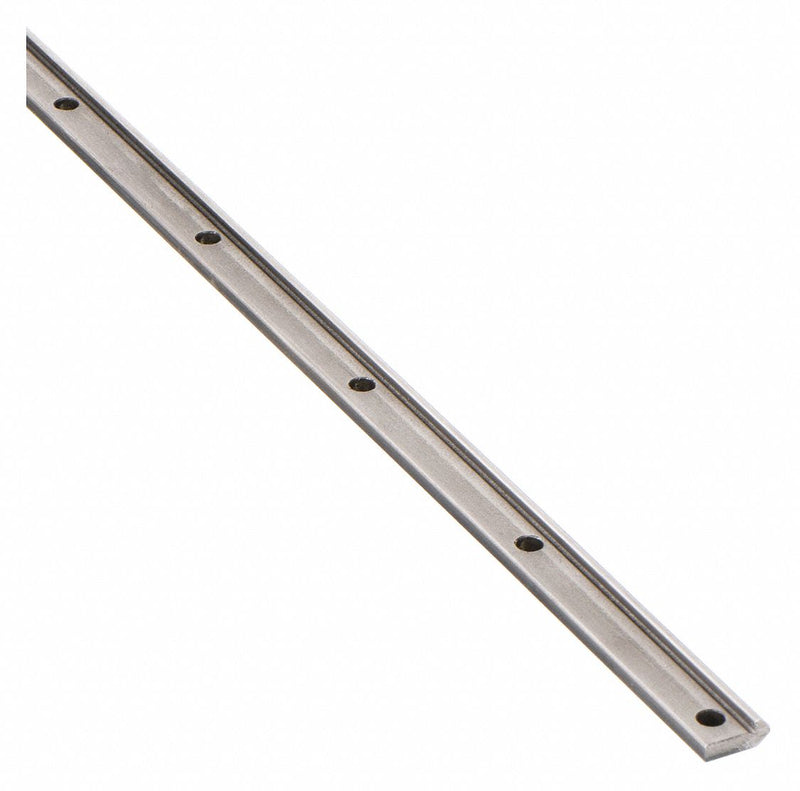

PBC Linear VRD4-025.000 Drilled Linear Rail, V-Guide, Size 4, 25 in Length, 0.437 in Width, Carbon Steel
Original price
$84.12
-
Original price
$84.12
Original price
$84.12
$84.12
-
$84.12
Current price
$84.12
Drilled Linear Rail, Overall Length 25 in, Overall Width 0.437 in, Overall Height 1.037 in, Rail Material Carbon Steel, Manufacturer Size 4, Number of Mounting Holes 7, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 4 in, Mounting Hole Center to Shaft End 2.5 in, Channel Material Steel, Series V-Guide
| Type | V-Guide |
|---|---|
| Rail Material | Carbon Steel |
| Manufacturer Size | 4 |
| Overall Length | 25 in |
| Overall Width | 0.437 in |
| Overall Height | 1.037 in |
| Mounting Hole Size | 0.344 in |
| Thread Size | 0.312 in or M8 |
| Undercut Depth | 0.314 in |
| Rail Finish | Cold Roll |
| Temp. Range (F) | 0 - 248 |
| Mounting Hole Center to Center | 4 in |
| Number of Rail Holes | 7 |
| Mounting Hole from Shaft End | 0.5 in |
| Screw Type | Low Profile Socket Head Cap |
| Raceway | 52100 Steel |
| Series | V-Guide |
| Minimum Operating Temperature | 0 Degrees F |
| Maximum Operating Temperature | 248 Degrees F |
| Raceway Material | 52100 Steel |
| Rail Type | Slide |
| Load Direction | Axial, Radial |
| Edge Angle | 90 Degrees |
| Channel Material | Steel |
| Requires Lubrication | Lubricant Not Required |
| System of Measurement | Inch |
| Country of Origin | United States |
