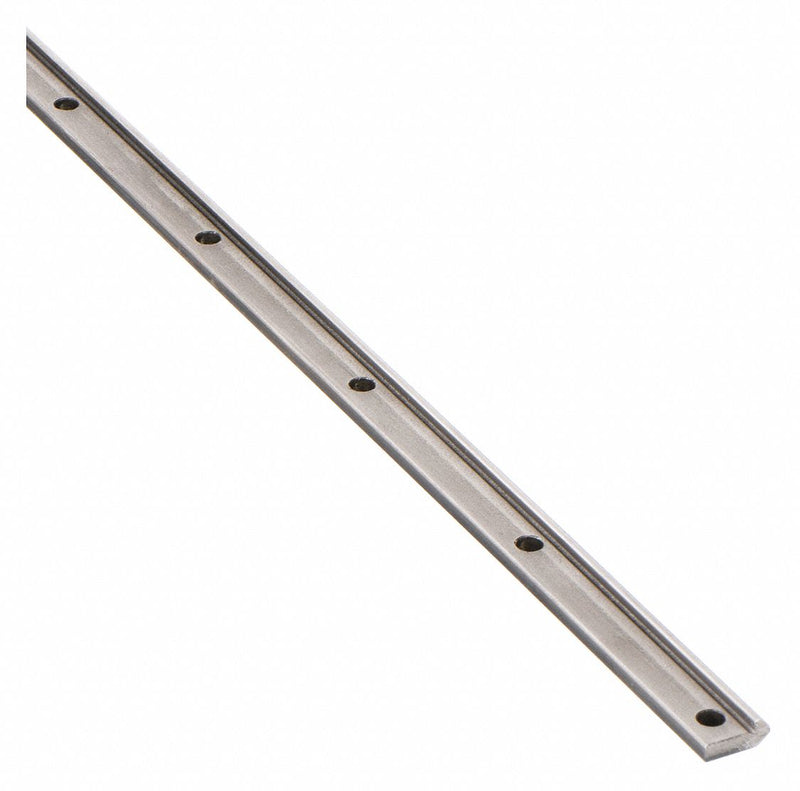

PBC Linear VRD4-037.000 Drilled Linear Rail, V-Guide, Size 4, 37 in Length, 0.437 in Width, Carbon Steel
Original price
$121.55
-
Original price
$121.55
Original price
$121.55
$121.55
-
$121.55
Current price
$121.55
Drilled Linear Rail, Overall Length 37 in, Overall Width 0.437 in, Overall Height 1.037 in, Rail Material Carbon Steel, Manufacturer Size 4, Number of Mounting Holes 10, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 4 in, Mounting Hole Center to Shaft End 2.5 in, Channel Material Steel, Series V-Guide
| Type | V-Guide |
|---|---|
| Rail Material | Carbon Steel |
| Manufacturer Size | 4 |
| Overall Length | 37 in |
| Overall Width | 0.437 in |
| Overall Height | 1.037 in |
| Thread Size | 0.312 in or M8 |
| Mounting Hole Size | 0.344 in |
| Undercut Depth | 0.314 in |
| Number of Rail Holes | 10 |
| Mounting Hole Center to Center | 4 in |
| Rail Finish | Cold Roll |
| Temp. Range (F) | 0 - 248 |
| For Use With | V-Guide Wheels and Bushings |
| Screw Type | Low Profile Socket Head Cap |
| Raceway | 52100 Steel |
| Mounting Hole from Shaft End | 0.5 in |
| Number of Mounting Holes | 10 |
| Maximum Operating Temperature | 248 Degrees F |
| Rail Type | Slide |
| Series | V-Guide |
| Raceway Material | 52100 Steel |
| Minimum Operating Temperature | 0 Degrees F |
| Mounting Hole Center to Shaft End | 2.5 in |
| Requires Lubrication | Lubricant Not Required |
| Load Direction | Axial, Radial |
| System of Measurement | Inch |
| Channel Material | Steel |
| Edge Angle | 90 Degrees |
| Country of Origin | United States |
