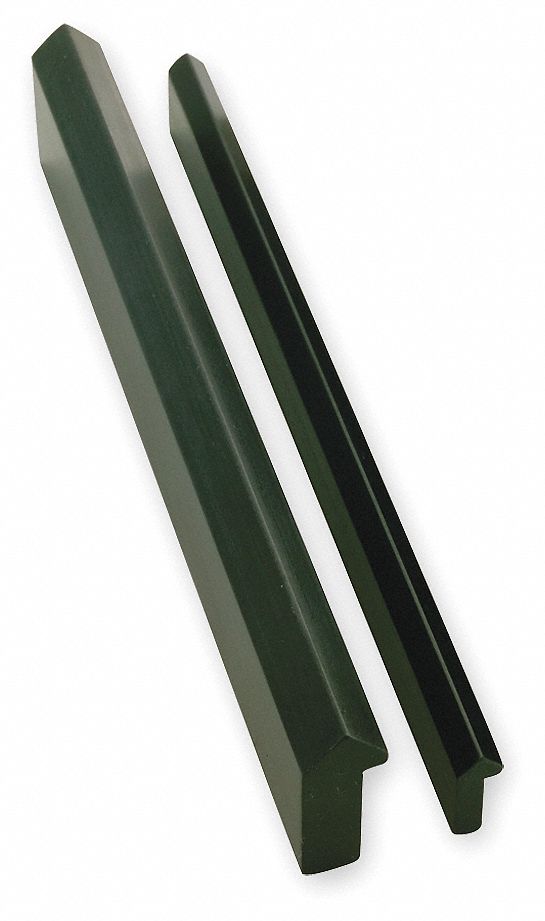

PBC Linear VRD4-049.000 Drilled Linear Rail, V-Guide, Size 4, 49 in Length, 0.437 in Width, Carbon Steel
Original price
$211.46
-
Original price
$211.46
Original price
$211.46
$211.46
-
$211.46
Current price
$211.46
Drilled Linear Rail, Overall Length 49 in, Overall Width 0.437 in, Overall Height 1.037 in, Rail Material Carbon Steel, Manufacturer Size 4, Number of Mounting Holes 13, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 4 in, Mounting Hole Center to Shaft End 2.5 in, Channel Material Steel, Series V-Guide
| Type | V-Guide |
|---|---|
| Overall Length | 49 in |
| Overall Width | 0.437 in |
| Overall Height | 1.037 in |
| Mounting Hole Size | 0.344 in |
| Thread Size | 0.312 in or M8 |
| Manufacturer Size | 4 |
| Undercut Depth | 0.314 in |
| Rail Material | Carbon Steel |
| Mounting Hole Center to Center | 4 in |
| Screw Type | Low Profile Socket Head Cap |
| Rail Finish | Cold Roll |
| Mounting Hole from Shaft End | 0.5 in |
| For Use With | V-Guide Wheels and Bushings |
| Raceway | 52100 Steel |
| Temp. Range (F) | 0 - 248 |
| Number of Rail Holes | 13 |
| Number of Mounting Holes | 13 |
| Rail Type | Slide |
| Raceway Material | 52100 Steel |
| Series | V-Guide |
| Channel Material | Steel |
| Edge Angle | 90 Degrees |
| Mounting Hole Center to Shaft End | 2.5 in |
| Load Direction | Axial, Radial |
| System of Measurement | Inch |
| Requires Lubrication | Lubricant Not Required |
| Country of Origin | United States |
