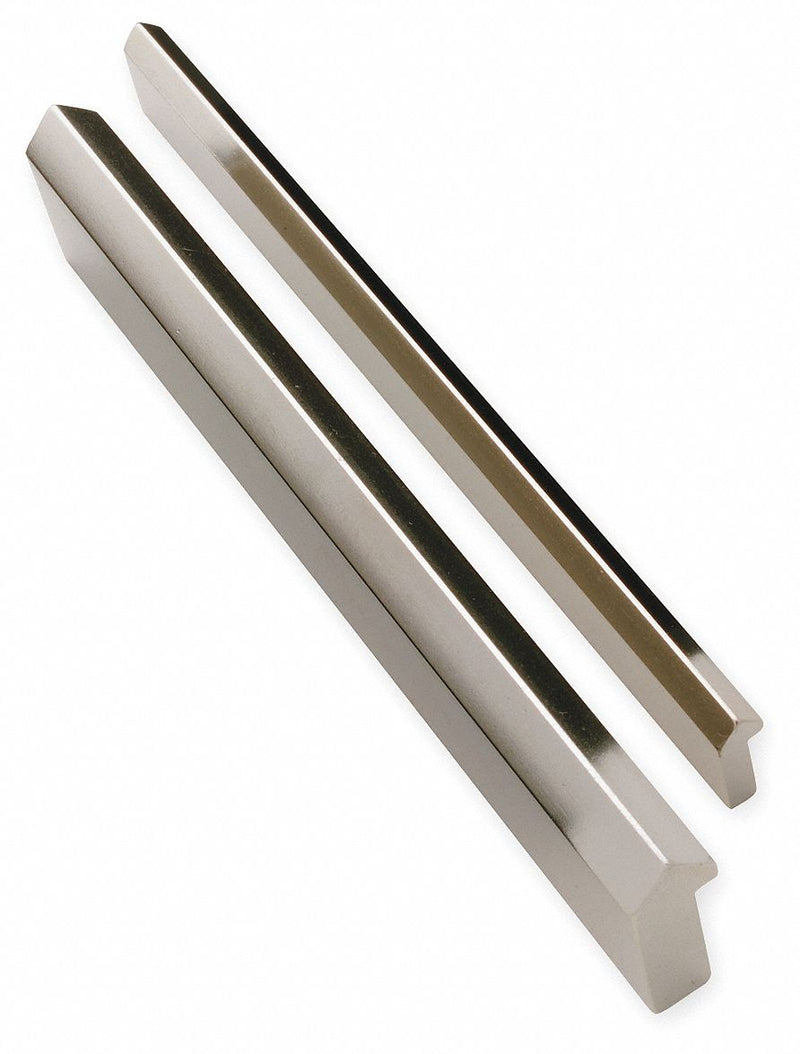

PBC Linear VRS1-012.500 Undrilled Linear Rail, V-Guide, Size 1, 12.5 in Length, 0.187 in Width, Stainless Steel
Original price
$27.38
-
Original price
$27.38
Original price
$27.38
$27.38
-
$27.38
Current price
$27.38
Undrilled Linear Rail, Overall Length 12.5 in, Overall Width 0.187 in, Overall Height 0.421 in, Rail Material Stainless Steel, Manufacturer Size 1, Number of Mounting Holes Not Applicable, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center Not Applicable, Mounting Hole Center to Shaft End Not Applicable
| Overall Length | 12.5 in |
|---|---|
| Overall Width | 0.187 in |
| Overall Height | 0.421 in |
| Manufacturer Size | 1 |
| Undercut Depth | 0.127 in |
| Type | V-Guide |
| Rail Material | Stainless Steel |
| Temp. Range (F) | 0 - 248 |
| Raceway | 303 Stainless Steel |
| Rail Finish | Cold Roll |
| For Use With | V-Guide Wheels and Bushings |
| Temp. Range | 0 - 248F |
| Maximum Operating Temperature | 248 Degrees F |
| Minimum Operating Temperature | 0 Degrees F |
| Raceway Material | 303 Stainless Steel |
| Rail Type | Slide |
| Series | V-Guide |
| System of Measurement | Inch |
| Edge Angle | 90 Degrees |
| Requires Lubrication | Lubricant Not Required |
| Operating Temperature - Maximum | 180 Degrees F |
| Channel Material | Stainless Steel |
| Operating Temperature - Minimum | 0 Degrees F |
| Load Direction | Axial, Radial |
| Country of Origin | United States |
