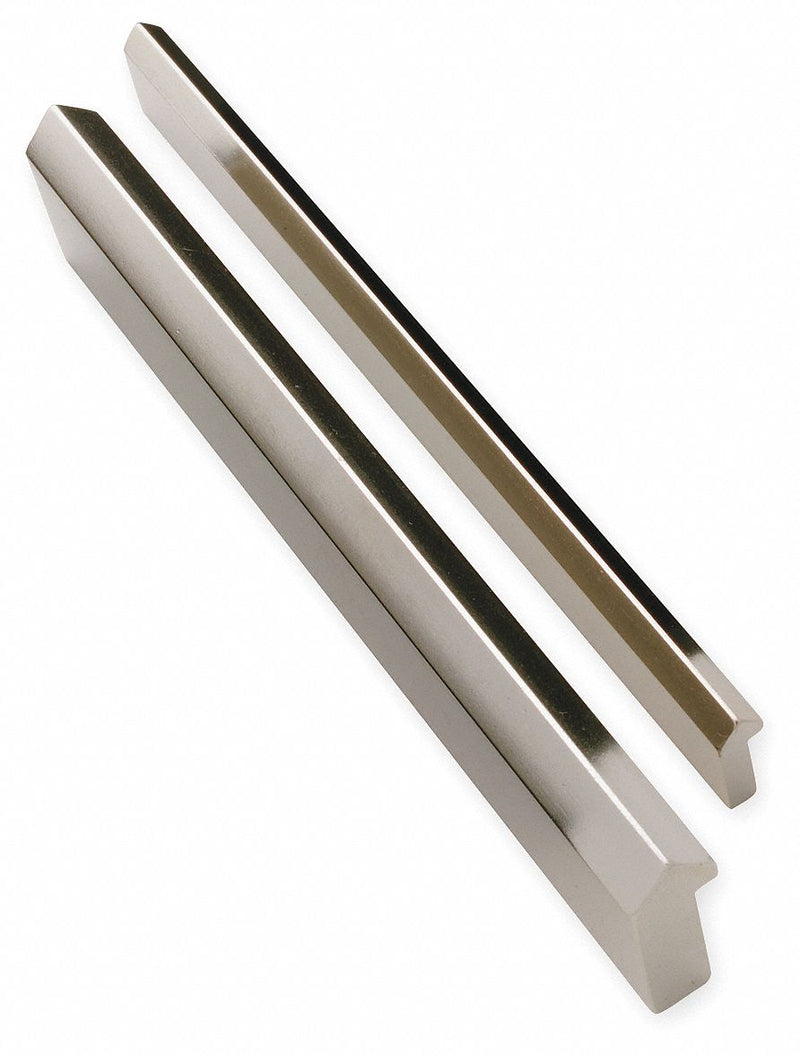

PBC Linear VRS2-012.630 Undrilled Linear Rail, V-Guide, Size 2, 12.63 in Length, 0.25 in Width, Stainless Steel
Original price
$41.44
-
Original price
$41.44
Original price
$41.44
$41.44
-
$41.44
Current price
$41.44
Undrilled Linear Rail, Overall Length 12.63 in, Overall Width 0.25 in, Overall Height 0.625 in, Rail Material Stainless Steel, Manufacturer Size 2, Number of Mounting Holes Not Applicable, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center Not Applicable, Mounting Hole Center to Shaft End Not Applicable
| Overall Length | 12.63 in |
|---|---|
| Overall Width | 0.25 in |
| Overall Height | 0.625 in |
| Undercut Depth | 0.19 in |
| Manufacturer Size | 2 |
| Type | V-Guide |
| Rail Material | Stainless Steel |
| Temp. Range | 0 - 248F |
| Rail Finish | Cold Roll |
| Temp. Range (F) | 0 - 248 |
| For Use With | V-Guide Wheels and Bushings |
| Raceway | 303 Stainless Steel |
| Maximum Operating Temperature | 248 Degrees F |
| Minimum Operating Temperature | 0 Degrees F |
| Raceway Material | 303 Stainless Steel |
| Series | V-Guide |
| Rail Type | Slide |
| Edge Angle | 90 Degrees |
| Operating Temperature - Maximum | 180 Degrees F |
| Channel Material | Stainless Steel |
| Operating Temperature - Minimum | 0 Degrees F |
| System of Measurement | Inch |
| Load Direction | Axial, Radial |
| Requires Lubrication | Lubricant Not Required |
| Country of Origin | United States |
