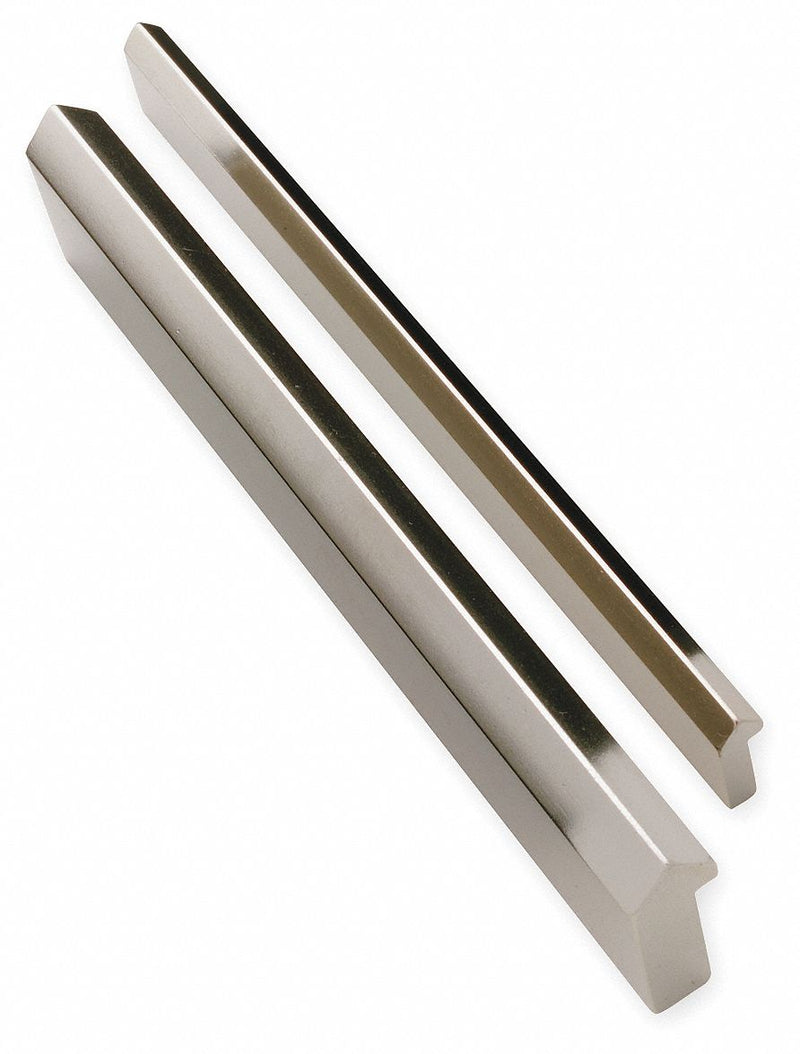

PBC Linear VRS3-048.750 Undrilled Linear Rail, V-Guide, Size 3, 48.75 in Length, 0.343 in Width, Stainless Steel
Original price
$307.61
-
Original price
$307.61
Original price
$307.61
$307.61
-
$307.61
Current price
$307.61
Undrilled Linear Rail, Overall Length 48.75 in, Overall Width 0.343 in, Overall Height 0.851 in, Rail Material Stainless Steel, Manufacturer Size 3, Number of Mounting Holes Not Applicable, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F
| Type | V-Guide |
|---|---|
| Rail Material | Stainless Steel |
| Rail Finish | Cold Roll |
| Raceway | 303 Stainless Steel |
| Temp. Range (F) | 0 - 248 |
| For Use With | V-Guide Wheels and Bushings |
| Maximum Operating Temperature | 248 Degrees F |
| Rail Type | Slide |
| Raceway Material | 303 Stainless Steel |
| Series | V-Guide |
| Minimum Operating Temperature | 0 Degrees F |
| Edge Angle | 90 Degrees |
| Load Direction | Axial, Radial |
| Requires Lubrication | Lubricant Not Required |
| Channel Material | Stainless Steel |
| System of Measurement | Inch |
| Overall Length | 48.75 in |
| Overall Width | 0.343 in |
| Overall Height | 0.851 in |
| Manufacturer Size | 3 |
| Undercut Depth | 0.253 in |
| Country of Origin | United States |
