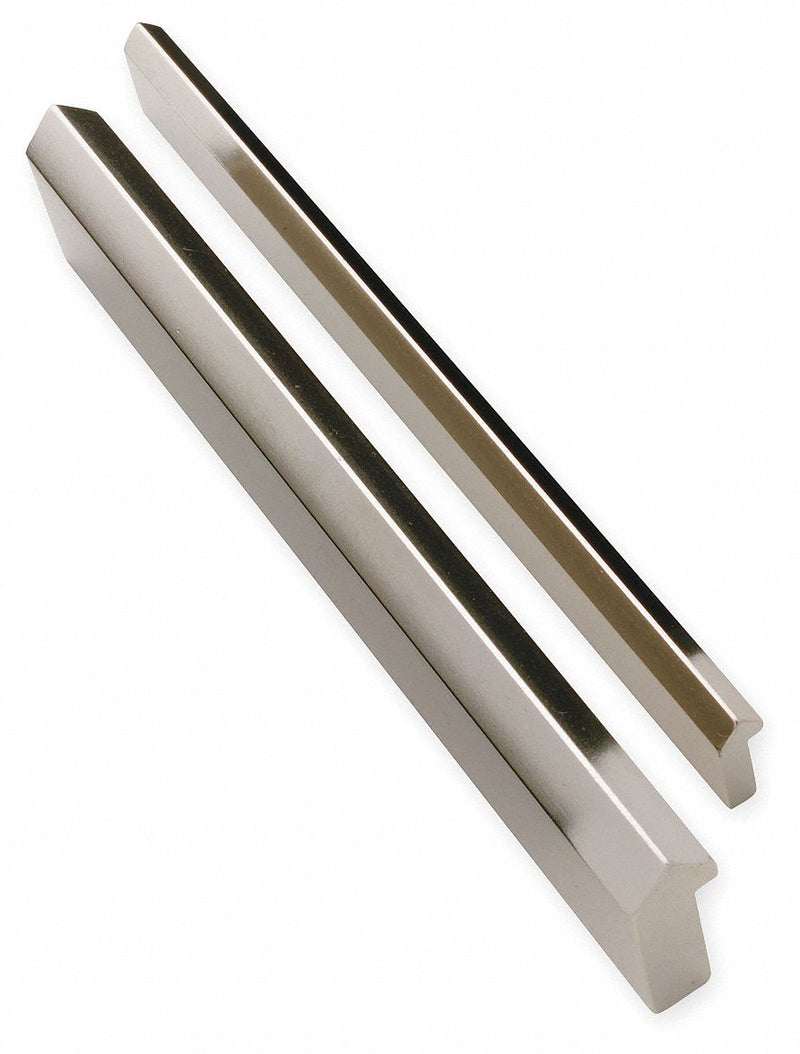

PBC Linear VRS4-025.000 Undrilled Linear Rail, V-Guide, Size 4, 25 in Length, 0.437 in Width, Stainless Steel
Original price
$192.36
-
Original price
$192.36
Original price
$192.36
$192.36
-
$192.36
Current price
$192.36
Undrilled Linear Rail, Overall Length 25 in, Overall Width 0.437 in, Overall Height 1.037 in, Rail Material Stainless Steel, Manufacturer Size 4, Number of Mounting Holes Not Applicable, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F
| Type | V-Guide |
|---|---|
| Rail Material | Stainless Steel |
| Overall Length | 25 in |
| Overall Width | 0.437 in |
| Overall Height | 1.037 in |
| Manufacturer Size | 4 |
| Undercut Depth | 0.314 in |
| Rail Finish | Cold Roll |
| Temp. Range (F) | 0 - 248 |
| Raceway | 303 Stainless Steel |
| For Use With | V-Guide Wheels and Bushings |
| Rail Type | Slide |
| Minimum Operating Temperature | 0 Degrees F |
| Raceway Material | 303 Stainless Steel |
| Maximum Operating Temperature | 248 Degrees F |
| Series | V-Guide |
| System of Measurement | Inch |
| Channel Material | Stainless Steel |
| Edge Angle | 90 Degrees |
| Requires Lubrication | Lubricant Not Required |
| Load Direction | Axial, Radial |
| Country of Origin | United States |
