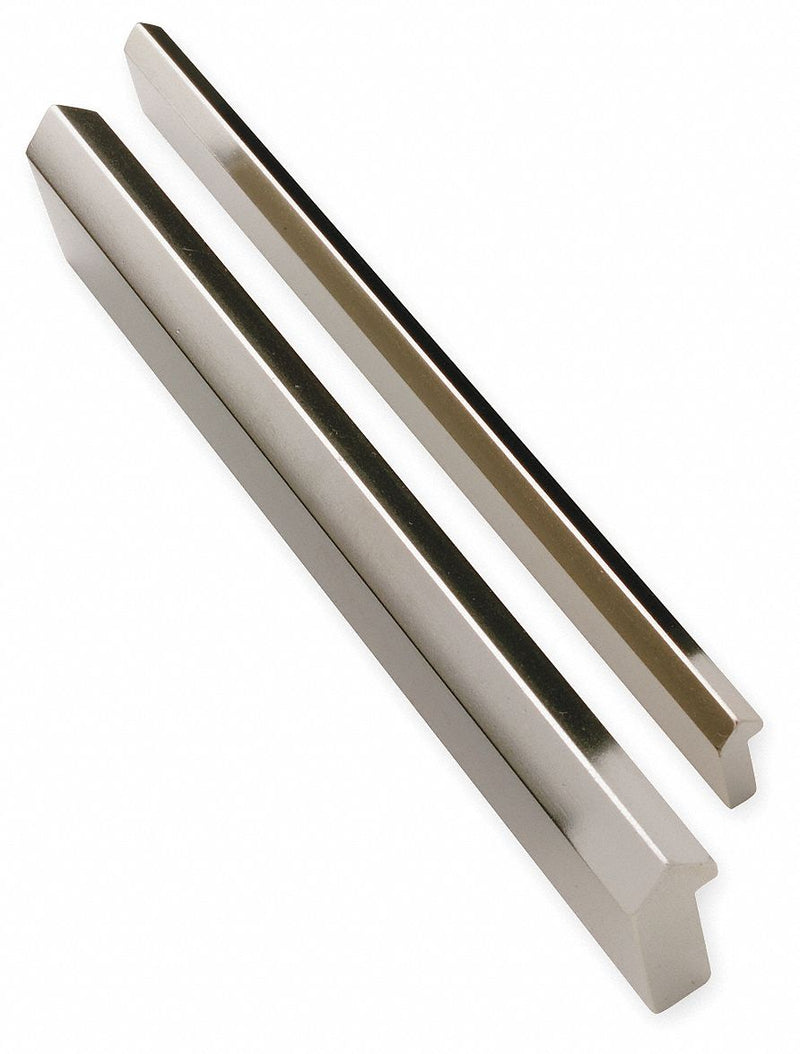

PBC Linear VRS4-049.000 Undrilled Linear Rail, V-Guide, Size 4, 49 in Length, 0.437 in Width, Stainless Steel

PBC Linear VRS4-049.000 Undrilled Linear Rail, V-Guide, Size 4, 49 in Length, 0.437 in Width, Stainless Steel

$427.56 - $427.56
$427.56
$427.56 - $427.56
$427.56

Undrilled Linear Rail, Overall Length 49 in, Overall Width 0.437 in, Overall Height 1.037 in, Rail Material Stainless Steel, Manufacturer Size 4, Number of Mounting Holes Not Applicable, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F

Type V-Guide
Overall Length 49 in
Overall Width 0.437 in
Overall Height 1.037 in
Rail Material Stainless Steel
Manufacturer Size 4
Undercut Depth 0.314 in
Rail Finish Cold Roll
Rail Type Slide
Temp. Range (F) 0 - 248
Raceway 303 Stainless Steel
Channel Material Stainless Steel
Load Direction Axial, Radial
Edge Angle 90 Degrees
Requires Lubrication Lubricant Not Required
System of Measurement Inch
Country of Origin United States
