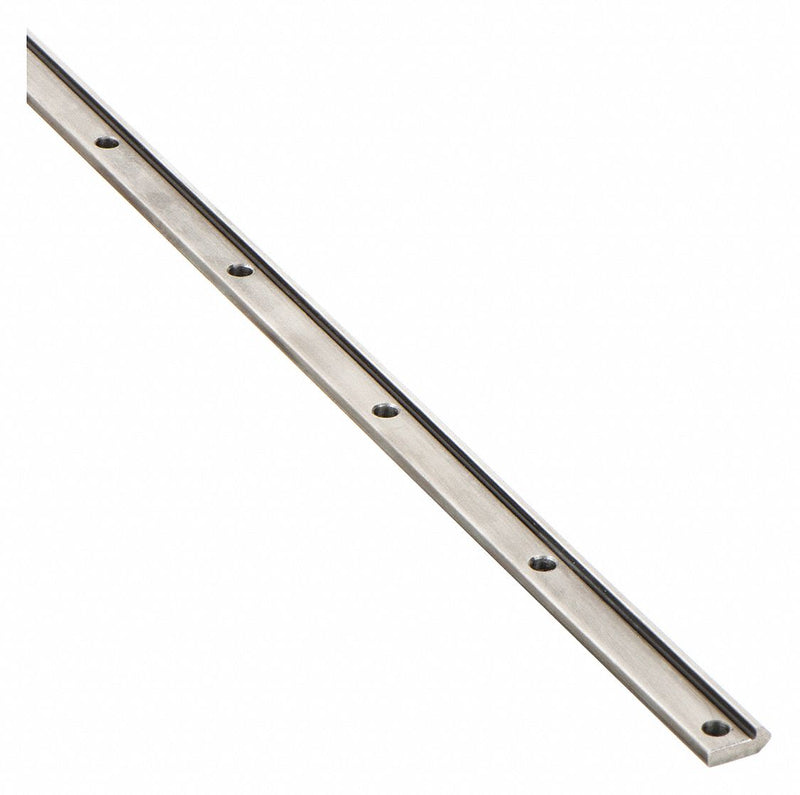

PBC Linear VRSD1-012.500 Drilled Linear Rail, V-Guide, Size 1, 12.5 in Length, 0.187 in Width, Stainless Steel
Original price
$29.09
-
Original price
$29.09
Original price
$29.09
$29.09
-
$29.09
Current price
$29.09
Drilled Linear Rail, Overall Length 12.5 in, Overall Width 0.187 in, Overall Height 0.421 in, Rail Material Stainless Steel, Manufacturer Size 1, Number of Mounting Holes 7, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 2 in, Mounting Hole Center to Shaft End 1.25 in, Channel Material Stainless Steel
| Overall Length | 12.5 in |
|---|---|
| Overall Width | 0.187 in |
| Overall Height | 0.421 in |
| Thread Size | #6 or M3 |
| Mounting Hole Size | 0.156 in |
| Manufacturer Size | 1 |
| Undercut Depth | 0.127 in |
| Type | V-Guide |
| Rail Material | Stainless Steel |
| Rail Finish | Cold Roll |
| Number of Rail Holes | 7 |
| Temp. Range | 0 - 248F |
| For Use With | V-Guide Wheels and Bushings |
| Screw Type | Low Profile Socket Head Cap |
| Raceway | 303 Stainless Steel |
| Mounting Hole from Shaft End | 0.25 in |
| Temp. Range (F) | 0 - 248 |
| Mounting Hole Center to Center | 2 in |
| Number of Mounting Holes | 7 |
| Minimum Operating Temperature | 0 Degrees F |
| Series | V-Guide |
| Raceway Material | 303 Stainless Steel |
| Maximum Operating Temperature | 248 Degrees F |
| Rail Type | Slide |
| Load Direction | Axial, Radial |
| Mounting Hole Center to Shaft End | 1.25 in |
| Requires Lubrication | Lubricant Not Required |
| Operating Temperature - Maximum | 180 Degrees F |
| System of Measurement | Inch |
| Channel Material | Stainless Steel |
| Operating Temperature - Minimum | 0 Degrees F |
| Edge Angle | 90 Degrees |
| Country of Origin | United States |
