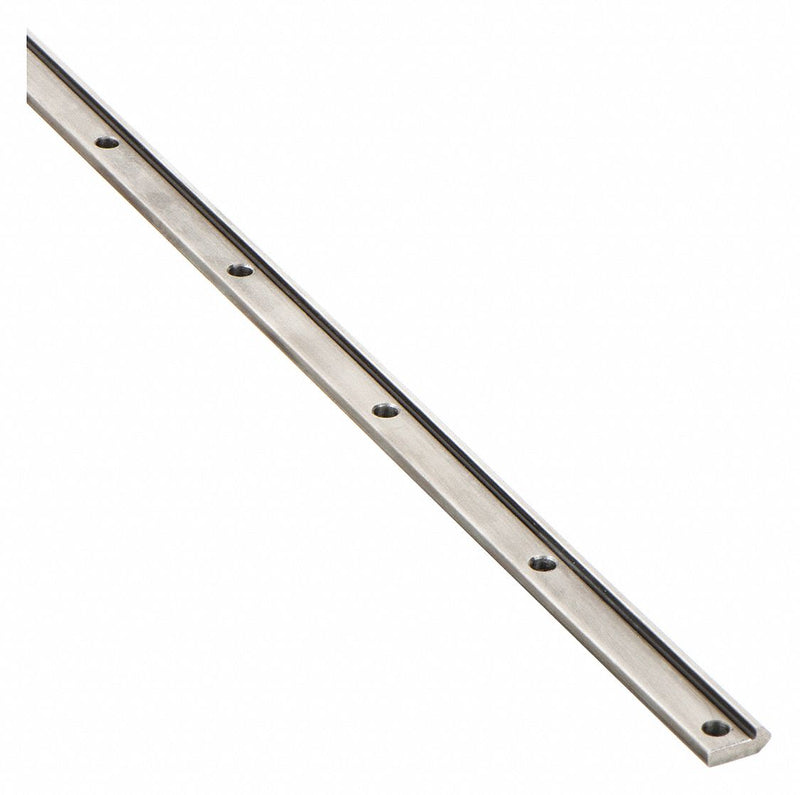

PBC Linear VRSD2-012.630 Drilled Linear Rail, V-Guide, Size 2, 12.63 in Length, 0.25 in Width, Stainless Steel
Original price
$42.59
-
Original price
$42.59
Original price
$42.59
$42.59
-
$42.59
Current price
$42.59
Drilled Linear Rail, Overall Length 12.63 in, Overall Width 0.25 in, Overall Height 0.625 in, Rail Material Stainless Steel, Manufacturer Size 2, Number of Mounting Holes 5, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 3 in, Mounting Hole Center to Shaft End 1.815 in, Channel Material Stainless Steel
| Overall Length | 12.63 in |
|---|---|
| Overall Width | 0.25 in |
| Overall Height | 0.625 in |
| Mounting Hole Size | 0.203 in |
| Thread Size | #10 or M6 |
| Undercut Depth | 0.19 in |
| Manufacturer Size | 2 |
| Type | V-Guide |
| Rail Material | Stainless Steel |
| Temp. Range (F) | 0 - 248 |
| Rail Finish | Cold Roll |
| Number of Rail Holes | 5 |
| Screw Type | Low Profile Socket Head Cap |
| Raceway | 303 Stainless Steel |
| Temp. Range | 0 - 248F |
| For Use With | V-Guide Wheels and Bushings |
| Mounting Hole from Shaft End | 0.315 in |
| Mounting Hole Center to Center | 3 in |
| Number of Mounting Holes | 5 |
| Series | V-Guide |
| Minimum Operating Temperature | 0 Degrees F |
| Rail Type | Slide |
| Raceway Material | 303 Stainless Steel |
| Maximum Operating Temperature | 248 Degrees F |
| Mounting Hole Center to Shaft End | 1.815 in |
| Channel Material | Stainless Steel |
| Operating Temperature - Maximum | 180 Degrees F |
| Operating Temperature - Minimum | 0 Degrees F |
| Requires Lubrication | Lubricant Not Required |
| Edge Angle | 90 Degrees |
| System of Measurement | Inch |
| Load Direction | Axial, Radial |
| Country of Origin | United States |
