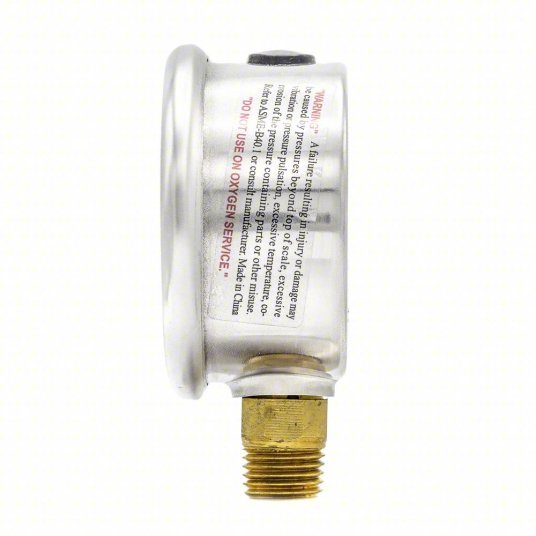

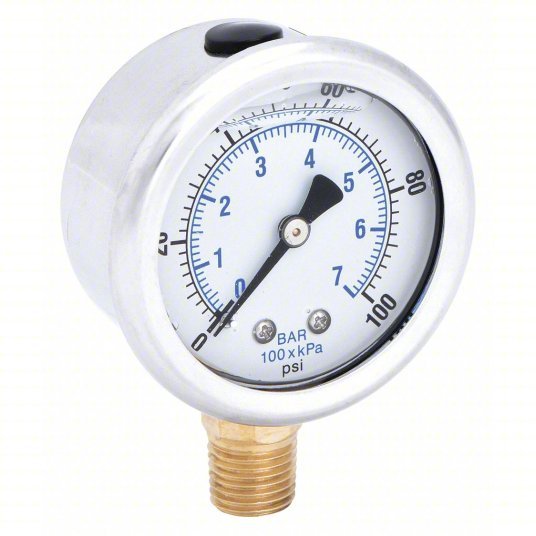

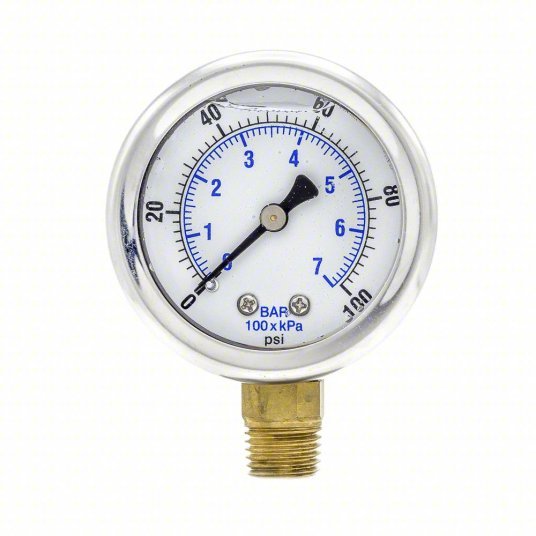

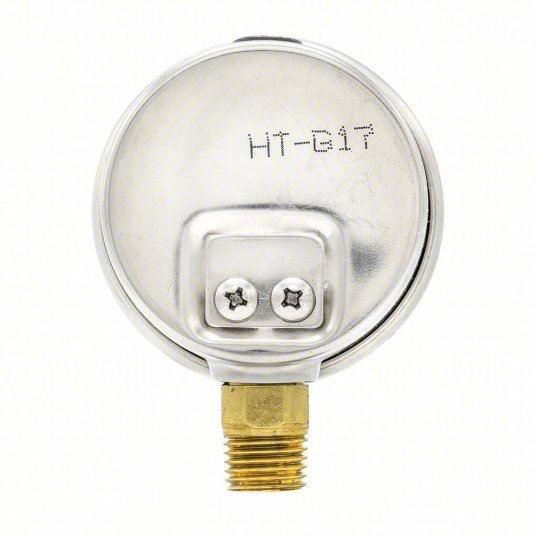

PIC 201L-204E Pressure Gauge, 0 to 100 psi, 1/4 in MNPT, Stainless Steel, Silver
Original price
$21.83
-
Original price
$21.83
Original price
$21.83
$21.83
-
$21.83
Current price
$21.83
Industrial Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 100, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White
| Item | Industrial Pressure Gauge |
| Connection Location | Lower |
| For Use With | Hydraulic Applications, Media Compatible with Copper Alloy/Brass |
| Gauge Application | Glycerine Filled for Added Durability in Applications Where Vibration or Pulsation is Present |
| Includes | Vent Plug |
| Range | 0 to 100 psi |
| Accuracy | +/-3-2-3% |
| Material | Stainless Steel |
| Gauge Primary Range Values | 0 to 100 |
| Gauge Primary Range Units | psi |
| Gauge Connection Type | MNPT |
| Basic Gauge Case Material | Stainless Steel |
| Case Color | Silver |
| Basic Gauge Socket Material | Copper |
| Calibration Certificate Included | No |
| Basic Gauge Sensor Material | Copper |
| Gauge Lens Material | Polycarbonate |
| Max. Pressure (PSI) | 100 |
| Gauge Primary Range Smallest Graduation | 2 |
| Pressure and Vacuum Gauge Type | Pressure Gauge |
| Basic Gauge Lens Material | Plastic |
| Gauge Connection Location | Bottom |
| Operating Temp. Range | 30 Degrees to 160 Degrees F |
| Gauge Primary Range Numbered Graduations | 20 |
| Gauge Sensor Material | Copper Alloy |
| Gauge Case Color | Stainless Steel |
| Gauge Case Material | Stainless Steel |
| Gauge Panel Mountable | No |
| Gauge Socket Material | Copper Alloy |
| Basic Gauge Wetted Parts | Copper |
| Liquid Filled | Yes |
| Gauge Accuracy | +/-3-2-3% |
| Smallest Graduation | 2 psi |
| Graduations | 20 psi |
| Series | 201L |
| Gauge Filled With | Glycerin |
| Socket Material | Copper Alloy |
| Pressure Range | 0 to 100 psi |
| Case Material | Stainless Steel |
| Pointer Color | Black |
| Gauge Wetted Parts | Copper |
| Lens Material | Polycarbonate |
| Gauge Accuracy Grade | Grade B - Commercial |
| Pressure Range Type | Pressure |
| Ambient Operating Temperature Range | 30 Degrees to 160 Degrees F |
| Field Fillable | No |
| Hazardous Location Rating | Not Rated |
| Primary Scale Units | psi |
| Blowout Safety Back | No |
| Includes Mounting Hardware | No |
| Lens Material - Gauge | Plastic |
| Pointer Material | Aluminum |
| Non-Sparking | No |
| Bezel Material | Stainless Steel |
| Panel-Mountable | No |
| Primary Scale Minor Graduations | 2 |
| Dial Face Material | Aluminum |
| Pressure Gauge Type | General Purpose Dial Pressure Gauge |
| Accuracy Grade | ASME B40.100 Grade B |
| Pressure Range (Secondary) | 0 to 100 psi ( 0 to 7 bar ) |
| Process Connection Type | NPT |
| Dial Color | White |
| Scale Type | Dual |
| Removable Bezel | No |
| Secondary Pressure Range | 0 to 7 bar |
| Liquid-Filled Case | Yes |
| Includes Vent Plug | Yes |
| Sensor Material | Copper Alloy |
| Vibration Resistance | Liquid-Filled |
| Dry Dampening Feature | None |
| Secondary Scale Units | bar |
| Cleaned for Oxygen Service | No |
| Primary Graduations | 2 |
| Accuracy Scale | Mid-Scale |
| Process Connection Location | Bottom |
| IP/NEMA Rating | Not Rated |
| Includes Calibration Certificate | No |
| Process Connection Gender | Male |
| Freeze Resistant Movement | No |
| Gauge Case Liquid | Glycerin |
| Bezel Mounting Type | Fixed |
| Primary Pressure Range | 0 to 100 |
