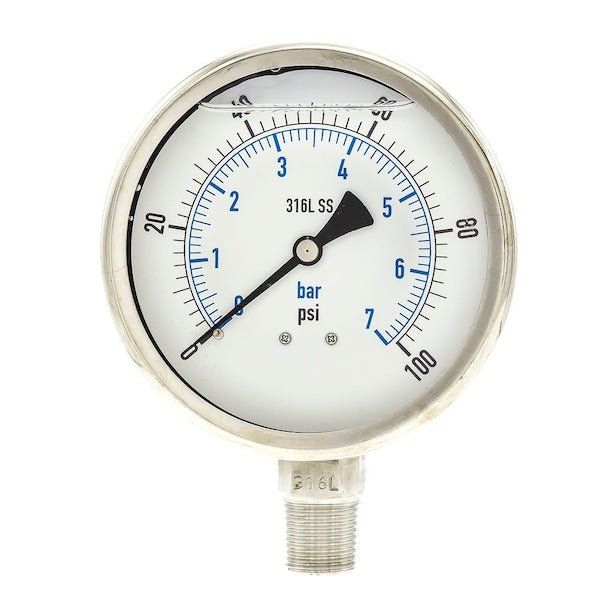

PIC Gauges PRO-301L-402E-01 Industrial Pressure Gauge 0 to 100 psi, 4 in Dial, Liquid-Filled, 1/2 in NPT Male, 300
Original price
$97.95
-
Original price
$97.95
Original price
$97.95
$97.95
-
$97.95
Current price
$97.95
Industrial Pressure Gauge, Nominal Dial Size 4 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/2 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 100, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge
| Connection Location | Lower |
| For Use With | Brass, Industrial Applications, Media Compatible with Copper Alloy |
| Gauge Application | In Applications Where Vibration or Pulsation is Present |
| Range | 0 to 100 psi |
| Accuracy | +/-2-1-2% |
| Material | Stainless Steel |
| Application | Industrial |
| Gauge Primary Range Values | 0 to 100 |
| Gauge Primary Range Units | psi |
| Gauge Connection Type | MNPT |
| Basic Gauge Case Material | Stainless Steel |
| Case Color | Metallic |
| Basic Gauge Socket Material | Stainless Steel |
| Liquid Filled | Yes |
| Basic Gauge Wetted Parts | Stainless Steel |
| Graduations | 20 psi |
| Max. Pressure (PSI) | 100 |
| Gauge Filled With | Glycerin |
| Gauge Special Options | Heavy Duty |
| Basic Gauge Lens Material | Plastic |
| Gauge Accuracy | +/-2-1-2% |
| Calibration Certificate Included | No |
| Gauge Primary Range Numbered Graduations | 20 |
| Gauge Primary Range Smallest Graduation | 2 |
| Basic Gauge Sensor Material | Stainless Steel |
| Gauge Case Color | Stainless Steel |
| Smallest Graduation | 2 psi |
| Operating Temp. Range | 30 Degrees to 160 Degrees F |
| Gauge Sensor Material | 316 Stainless Steel |
| Gauge Connection Location | Bottom |
| Gauge Case Material | Stainless Steel |
| Gauge Panel Mountable | No |
| Gauge Lens Material | Polycarbonate |
| Pressure and Vacuum Gauge Type | Pressure Gauge |
| Series | 300 |
| Gauge Socket Material | 316 Stainless Steel |
| Socket Material | 316 Stainless Steel |
| Standards | ASME |
| Scale Type | Dual |
| Accuracy Scale | Mid-Scale |
| Includes Calibration Certificate | No |
| Primary Scale Minor Graduations | 2 |
| Process Connection Type | NPT |
| Ambient Operating Temperature Range | 30 Degrees to 160 Degrees F |
| Dial Face Material | Stainless Steel |
| Dial Color | White |
| Vibration Resistance | Liquid-Filled |
| Pointer Material | Aluminum |
| Cleaned for Oxygen Service | No |
| Includes Vent Plug | No |
| Field Fillable | No |
| Removable Bezel | No |
| IP/NEMA Rating | Not Rated |
| Process Connection Location | Bottom |
| Pointer Color | Black |
| Non-Sparking | No |
| Blowout Safety Back | No |
| Liquid-Filled Case | Yes |
| Panel-Mountable | No |
| Bezel Material | Stainless Steel |
| Gauge Case Liquid | Glycerin |
| Includes Mounting Hardware | No |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Primary Scale Numeric Increments | 20 |
| Freeze Resistant Movement | No |
| Secondary Pressure Range | 0 to 7 |
| Hazardous Location Rating | Not Rated |
| Lens Material | Polycarbonate |
| Primary Pressure Range | 0 to 100 |
| Sensor Material | 316 Stainless Steel |
| Primary Scale Units | psi |
| Bezel Mounting Type | Fixed |
| Dry Dampening Feature | None |
| Secondary Scale Units | bar |
| Accuracy Grade | ASME B40.100 Grade A |
| Pressure Range Type | Pressure |
| Process Connection Gender | Male |
